Excavator 1404

1404 wiring harness engine Diagram

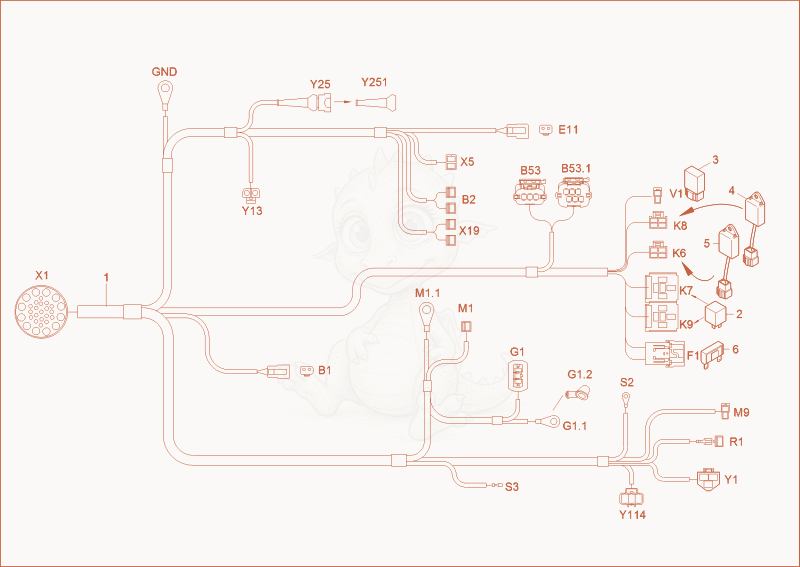

Exploded parts diagram of the wiring harness engine of a Wacker Neuson 1404, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000338921Not stocked
wiring harness engine×1
21000353650Not stocked
relay×2
31000012912Not stocked
diode×1
41000005108Not stocked
time relay×1
51000148380
$174.57
TIME RELAY - 1000148380×1
61000015302
$3.50
fuse - 1000015302×1
B11000081808
$16.43
pin housing - 1000081808×1
B21000027435Not stocked
insulating sleeve×2
B531000260159
$11.15
bushing housing - 1000260159×1
B5311000288405
$14.40
bushing housing - 1000288405×1
E111000081808
$16.43
pin housing - 1000081808×1
F11000027186
$10.05
Bracket - 1000027186×1
G11000110537
$32.62
bushing housing - 1000110537×1
G1.11000101271
$1.91
cable lug - 1000101271×1
G1.21000027463
$7.08
PROTECTING CAP - 1000027463×1
GND1000050028Not stocked
cable lug×1
K61000051986Not stocked
plug sleeve housing×1
K71000082001
$3.89
sockets - 1000082001×1
K81000051986Not stocked
plug sleeve housing×1
K91000082001
$3.89
sockets - 1000082001×1
M11000027435Not stocked
insulating sleeve×1
M1.11000050028Not stocked
cable lug×1
M91000101072
$0.75
plug sleeve housing - 1000101072×1
R11000081742
$2.88
plug housing - 1000081742×1
S21000050027Not stocked
cable lug×1
S31000027384Not stocked
round socket sleeve×1
V11000101072
$0.75
plug sleeve housing - 1000101072×1
X11000146158
$257.29
LUG HOUSING - 1000146158×1
X191000027435Not stocked
insulating sleeve×2
X51000095336Not stocked
plug sleeve housing×1
Y11000167178
$6.73
PLUG SLEEVE HOUSING - 1000167178×1
Y1141000288403
$17.31
Bushing Housing - 1000288403×1
Y131000130909
$6.59
bushing housing - 1000130909×1
Y251000027332
$3.80
housing - 1000027332×1
Y2511000027466Not stocked
protecting cap×1
