Excavator 1404

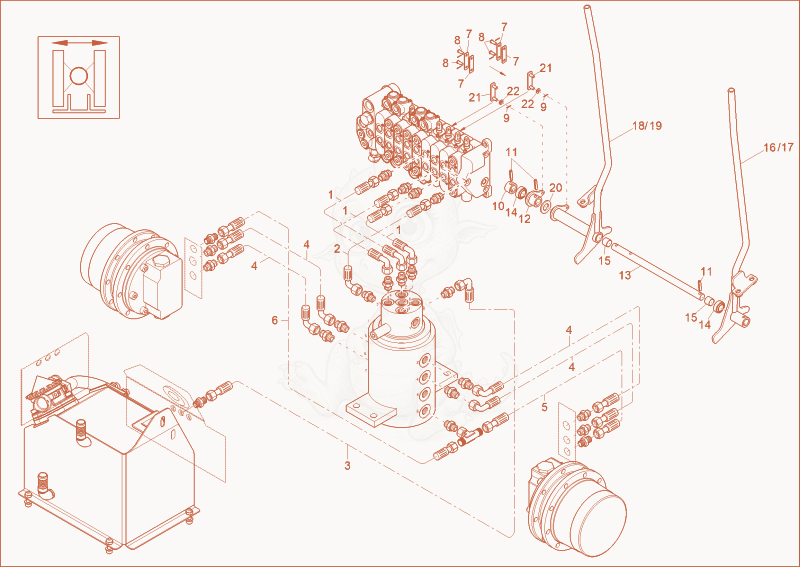

1404 TRAVELLING GEAR INSTALLATION TELESCOPIC Diagram

Exploded parts diagram of the TRAVELLING GEAR INSTALLATION TELESCOPIC of a Wacker Neuson 1404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000157844
    $38.64
    SLHYDR 2SC 10 PN10 90 PN10 0 L600,0 0 - 1000157844×1
  • 21000157847
    $42.03
    SLHYDR 2SC 10 PN10 90 PN10 0 L520,0 0 - 1000157847×1
  • 31000019666Not stocked
    Hose×1
  • 41000157880
    $47.16
    SLHYDR 2SC 10 PN12 90 PN12 0 L750,0F0 - 1000157880×4
  • 51000157875
    $36.60
    SLHYDR 1SC 6,0PN8 0 PN8 0 L750,0F0 - 1000157875×1
  • 61000157876
    $49.95
    SLHYDR 1SC 6,0PN8 0 PN8 0 L1100 F0 - 1000157876×1
  • 71000153422
    $0.99
    plate - 1000153422×4
  • 81000153421
    $5.05
    PIN - 1000153421×4
  • 91000151228
    $1.03
    cotter pin - 1000151228×4
  • 101000153430
    $9.59
    ring - 1000153430×1
  • 111000085648
    $0.75
    cotter pin - 1000085648×3
  • 121000153424
    $47.69
    LEVER - 1000153424×1
  • 131000153426
    $118.10
    gearshift shaft - 1000153426×1
  • 141000151229
    $60.42
    PIVOTING BEARING - 1000151229×2
  • 151000151242
    $9.90
    slide bearing 17x19x15 - 1000151242×2
  • 161000153427
    $65.59
    LEVER - 1000153427×1
  • 171000178384
    $172.34
    LEVER - 1000178384×1
  • 181000153428
    $204.99
    LEVER - 1000153428×1
  • 191000178383
    $179.26
    LEVER - 1000178383×1
  • 201000015452Not stocked
    washer×1
  • 211000325019
    $20.87
    plate - 1000325019×2
  • 221000015430Not stocked
    washer×4
