Excavator 1404

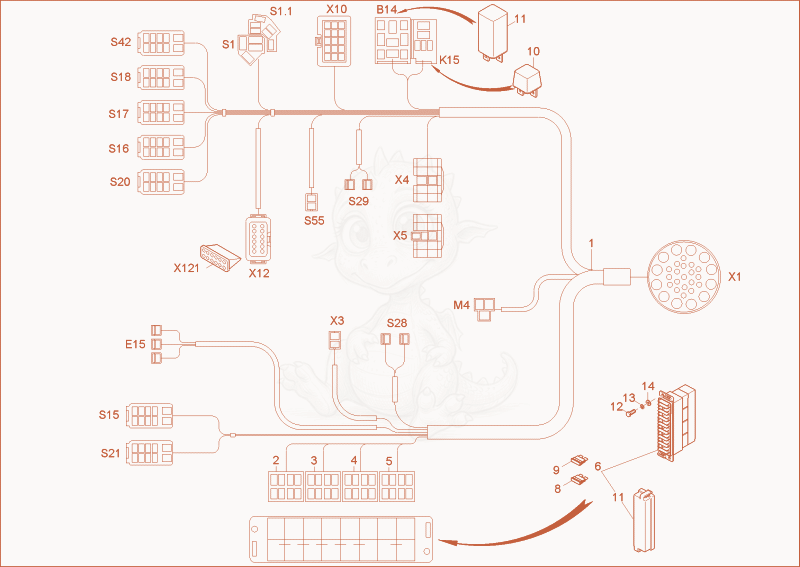

1404 wiring harness seat console Diagram

Exploded parts diagram of the wiring harness seat console of a Wacker Neuson 1404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000155737
    $1,400.88
    WIRING HARNESS ARMREST - 1000155737×1
  • 21000101620
    $8.84
    Socket housing - 1000101620×1
  • 31000101621
    $8.84
    Socket housing - 1000101621×1
  • 41000101622
    $8.84
    Socket housing - 1000101622×1
  • 51000101623
    $8.84
    Socket housing - 1000101623×1
  • 61000124067
    $105.94
    FUSE BOX - 1000124067×1
  • 71000124068
    $14.31
    cover fuse box - 1000124068×1
  • 81000085682
    $0.43
    fuse - 1000085682×5
  • 91000085683
    $0.55
    FUSE - 1000085683×3
  • 101000027080
    $14.15
    relay - 1000027080×1
  • 111000139287
    $64.10
    signal - 1000139287×1
  • 121000085375
    $0.69
    hex screw - 1000085375×2
  • 131000082612
    $0.65
    lock washer - 1000082612×2
  • 141000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×2
  • B141000082001
    $3.89
    sockets - 1000082001×1
  • E151000027435Not stocked
    insulating sleeve×3
  • K151000100593
    $6.63
    sockets - 1000100593×1
  • M41000095339
    $4.61
    plug sleeve housing - 1000095339×1
  • S11000027368Not stocked
    central plug×1
  • S1.11000027386
    $6.47
    PLUG - 1000027386×1
  • S151000124011
    $25.98
    bushing housing - 1000124011×1
  • S161000124011
    $25.98
    bushing housing - 1000124011×1
  • S171000124011
    $25.98
    bushing housing - 1000124011×1
  • S181000124011
    $25.98
    bushing housing - 1000124011×1
  • S201000124011
    $25.98
    bushing housing - 1000124011×1
  • S211000124011
    $25.98
    bushing housing - 1000124011×1
  • S281000027435Not stocked
    insulating sleeve×2
  • S291000027435Not stocked
    insulating sleeve×2
  • S421000124011
    $25.98
    bushing housing - 1000124011×1
  • S551000095336Not stocked
    plug sleeve housing×1
  • X11000146159
    $128.05
    bushing housing - 1000146159×1
  • X101000104663
    $11.53
    Pin housing - 1000104663×1
  • X121000085011
    $20.92
    Pin housing - 1000085011×1
  • X1211000085012
    $13.79
    LOCKING PIN - 1000085012×1
  • X31000095336Not stocked
    plug sleeve housing×1
  • X41000101653
    $6.73
    plug sleeve housing - 1000101653×1
  • X51000095321
    $5.84
    bushing housing - 1000095321×1
