Excavator 1404

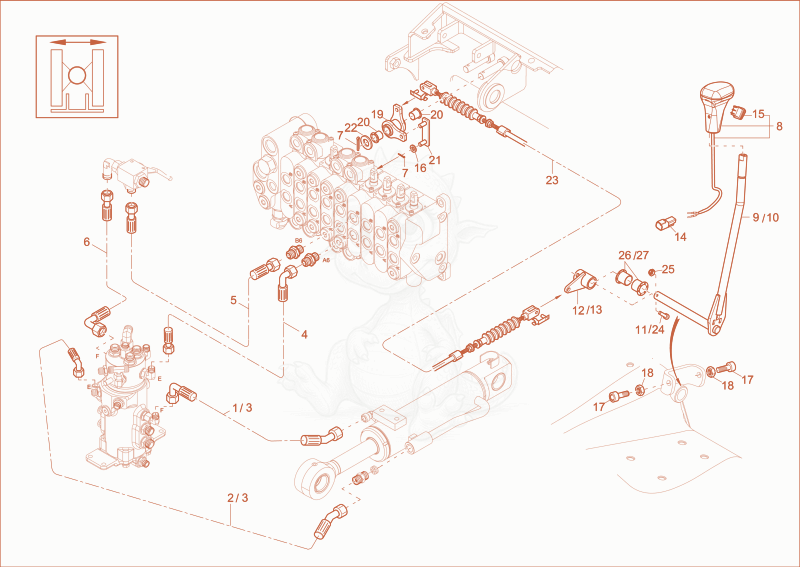

1404 DOZER BLADE OPERATION telescopic (Opt.) Diagram

Exploded parts diagram of the DOZER BLADE OPERATION telescopic (Opt.) of a Wacker Neuson 1404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000157879
    $52.82
    SLHYDR 2SC 6,0PN8 45 PN8 90 L650,0F90 - 1000157879×1
  • 21000157878
    $48.94
    SLHYDR 2SC 6,0PN8 45 PN8 45 L650,0F0 - 1000157878×1
  • 31000362043Not stocked
    Hose×2
  • 41000076570
    $16.50
    SLHYDR 2SC 6,0PN8 90 PN8 0 L850,0 0 - 1000076570×1
  • 51000154267
    $25.65
    SLHYDR 2SC 6,0PN8 0 PN8 0 L650,0 0 - 1000154267×1
  • 61000013131
    $61.63
    SLHYDR 2SC 6,0PN8 90 PN8 0 L1000 0 - 1000013131×1
  • 71000280924
    $1.08
    PIN COTTER 3.2 X 20 - 1000280924×3
  • 81000300113
    $145.75
    buttonhandle - 1000300113×1
  • 91000343903Not stocked
    dozer blade lever×1
  • 101000362557Not stocked
    dozer blade lever×1
  • 111000085452
    $0.70
    allen screw M5x20-8.8 A2C DIN912 - 1000085452×1
  • 121000325104
    $28.86
    lever - 1000325104×1
  • 131000362523
    $45.12
    lever - 1000362523×1
  • 141000027445Not stocked
    pin housing×1
  • 151000300119
    $37.08
    SWITCH - 1000300119×1
  • 161000015430Not stocked
    washer×2
  • 171000015376Not stocked
    cheese head screw×2
  • 181000015407Not stocked
    hexagon nut×2
  • 191000153423
    $43.22
    LEVER - 1000153423×1
  • 201000069438Not stocked
    slide bearing×2
  • 211000325019
    $20.87
    plate - 1000325019×1
  • 221000049219Not stocked
    washer×1
  • 231000395529
    $132.36
    Bowden cable - 1000395529×1
  • 241000082318
    $1.59
    COUNTERSUNK SCREW - 1000082318×1
  • 251000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 261000066462Not stocked
    slide bearing×2
  • 271000361826Not stocked
    slide bearing×2
