Excavator 1404

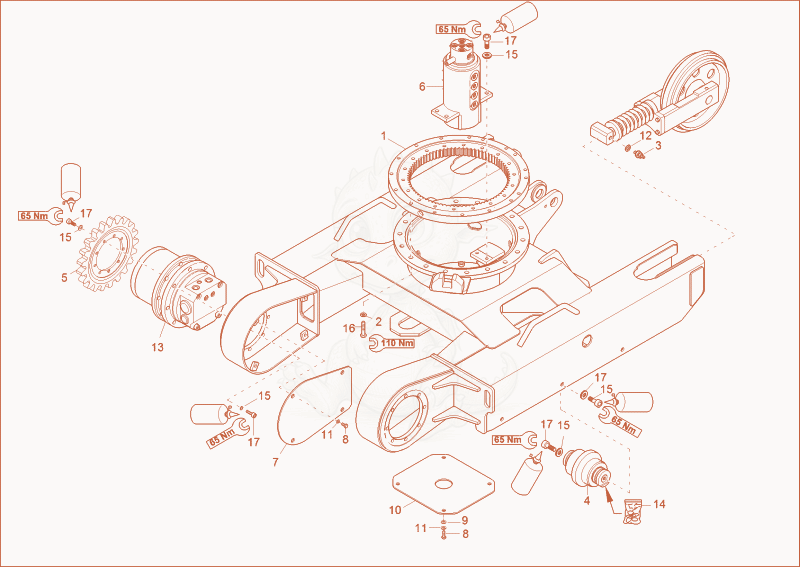

1404 undercarriage Diagram

Exploded parts diagram of the undercarriage of a Wacker Neuson 1404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000374848Not stocked
    slewing ring×1
  • 21000082611
    $0.90
    washer 13 A2C DIN6916 - 1000082611×18
  • 31000183476Not stocked
    non return valve×2
  • 31000258134
    $220.89
    Roller 1000258134×6
  • 41000258023
    $148.09
    Drivewheel 1000258023×2
  • 61000133733
    $1,672.74
    swivel joint - 1000133733×1
  • 71000099483
    $139.14
    Coverundercarriagedriveunit 1000099483×2
  • 81000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×12
  • 91000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 101000160670
    $132.10
    cover undercarriage - 1000160670×1
  • 111000015438Not stocked
    lock washer×12
  • 121000124948
    $12.46
    screw seal - 1000124948×2
  • 131000258109
    $3,476.37
    Driveunit 1000258109×2
  • 141000068854Not stocked
    seal kit×6
  • 151000015449Not stocked
    northlock disc×50
  • 161000015381Not stocked
    hex screw×18
  • 171000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×50
