Excavator 1404

1404 heating Diagram

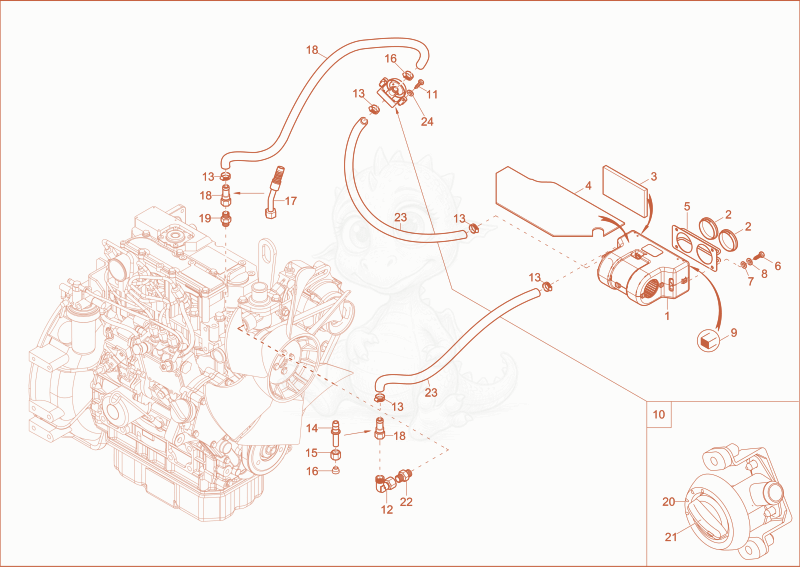

Exploded parts diagram of the heating of a Wacker Neuson 1404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000311210
    $339.49
    heating - 1000311210×1
  • 21000264494
    $67.12
    round nozzle - 1000264494×2
  • 31000157488
    $9.09
    HEATER FILTER - 1000157488×1
  • 41000155472
    $66.53
    Mat 1000155472×1
  • 51000157485
    $65.22
    COVER - 1000157485×1
  • 61000015377Not stocked
    hex screw×4
  • 71000015430Not stocked
    washer×4
  • 81000015436Not stocked
    lock washer×4
  • 91000098196
    $0.67
    seal strap foam 10x15 - 1000098196×0.7
  • 101000147152
    $89.65
    water valve - 1000147152×1
  • 111000158721
    $0.63
    hex screw - 1000158721×2
  • 121000000573Not stocked
    screw joint×1
  • 131000267810
    $4.29
    hose clamp - 1000267810×6
  • 141000016293
    $22.33
    hose sleeve - 1000016293×1
  • 151000015482
    $0.85
    M12L ST A3C - 1000015482×1
  • 161000015484
    $1.40
    DPR12LX - 1000015484×1
  • 171000159694
    $41.78
    Heater nozzle - 1000159694×1
  • 181000267951
    $22.17
    hose sleeve - 1000267951×2
  • 191000082875
    $6.68
    GE12LR3/8A3CX GEK. GEWINDE - 1000082875×1
  • 201000163591
    $19.02
    protection - 1000163591×1
  • 211000163590
    $18.88
    KNOB - 1000163590×1
  • 221000085053
    $2.82
    GE12LMEDOMDA3C - 1000085053×1
  • 231000261871
    $17.35
    heater hose ID15x3,5 - 1000261871×1.8
  • 241000095341
    $1.16
    WASHER - 1000095341×2
