WN Excavator 1703

1703 undercarriage Diagram

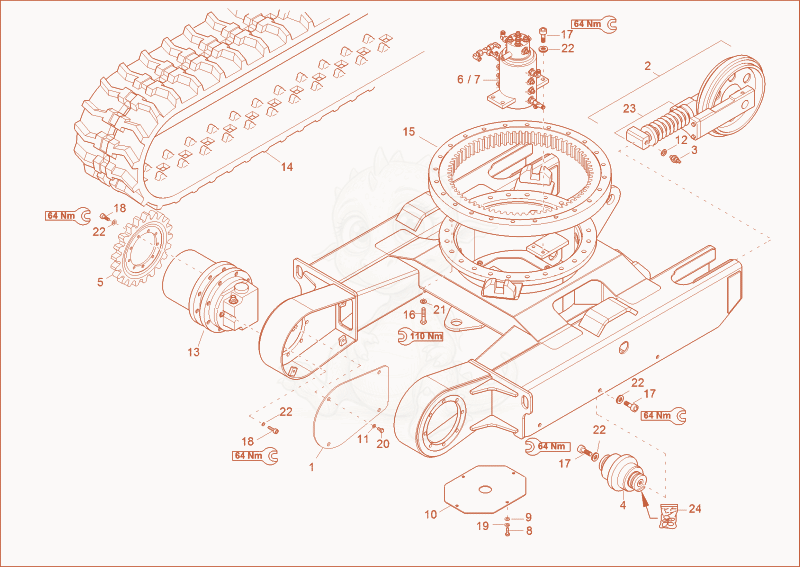

Exploded parts diagram of the undercarriage of a Wacker Neuson 1703, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000099483
    $139.14
    Coverundercarriagedriveunit 1000099483×2
  • 21000003859
    $784.38
    X-1000289997 Track Tensioner Complete - 1000003859×2
  • 31000183476Not stocked
    non return valve×2
  • 41000003860
    $164.16
    roller - 1000003860×6
  • 51000065701
    $325.80
    drive wheel - 1000065701×2
  • 61000065862Not stocked
    rotary junction×1
  • 71000133733
    $1,672.74
    swivel joint - 1000133733×1
  • 81000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 91000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 101000099484Not stocked
    cover undercarriage×1
  • 111000015437Not stocked
    lock washer×8
  • 121000124948
    $12.46
    screw seal - 1000124948×2
  • 131000065944Not stocked
    drive unit×2
  • 141000003864
    $859.88
    rubber track - 1000003864×2
  • 151000002889Not stocked
    slewing ring×1
  • 161000015372Not stocked
    hex screw×24
  • 171000015389Not stocked
    cheese head screw×16
  • 181000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×34
  • 191000015438Not stocked
    lock washer×8
  • 201000019593Not stocked
    cheese head screw×8
  • 211000082611
    $0.90
    washer 13 A2C DIN6916 - 1000082611×24
  • 221000015449Not stocked
    northlock disc×50
  • 231000065718
    $645.30
    SPRING ASSEMBLY - 1000065718×2
  • 241000068854Not stocked
    seal kit×6
