WN Excavator 1703

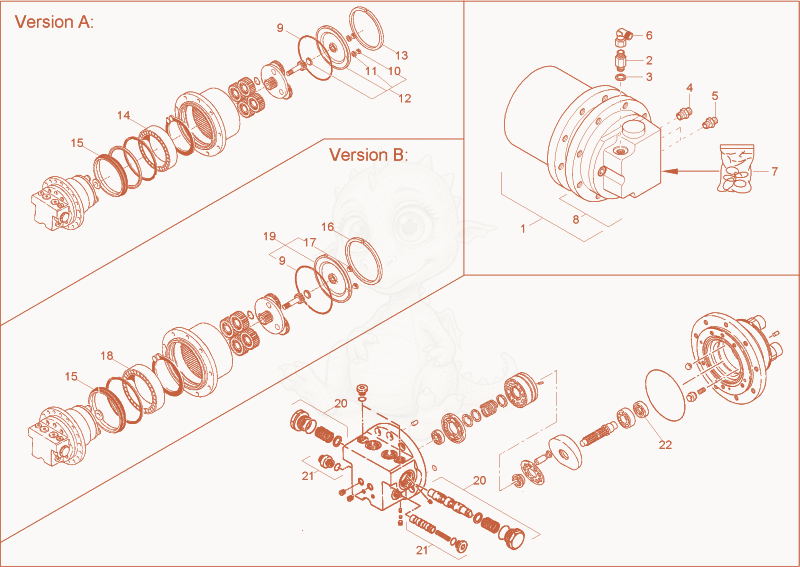

1703 drive unit Diagram

Exploded parts diagram of the drive unit of a Wacker Neuson 1703, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000065944Not stocked
    drive unit×2
  • 21000082945
    $17.82
    GEO08LR1/4OMDA3C - 1000082945×2
  • 31000095065Not stocked
    o-ring×2
  • 41000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×2
  • 51000082987
    $4.62
    GE12LR1/4OROMDA3C - 1000082987×4
  • 61000000542
    $11.08
    EW08LOMD - 1000000542×2
  • 71000066038Not stocked
    seal kit drive motor×2
  • 81000065880
    $4,613.96
    MOTOR - 1000065880×2
  • 91000095043
    $1.36
    O-RING - 1000095043×2
  • 101000015477Not stocked
    lock screw×4
  • 111000148374
    $4.75
    SEAL RING - 1000148374×4
  • 121000065881Not stocked
    cover×2
  • 131000065917Not stocked
    lock ring×2
  • 141000065961Not stocked
    bearing drive assy×2
  • 151000066037Not stocked
    life time seal×2
  • 161000148375
    $10.15
    lock ring - 1000148375×2
  • 171000148376Not stocked
    plug×4
  • 181000148378
    $380.15
    BEARING DRIVE ASSY - 1000148378×2
  • 191000148377Not stocked
    cover×2
  • 201000148456Not stocked
    VALVE SET×2
  • 211000148457Not stocked
    control piston×2
  • 221000165381
    $121.21
    SEAL RING - 1000165381×2
