WN Excavator 1703

1703 speed actuating Diagram

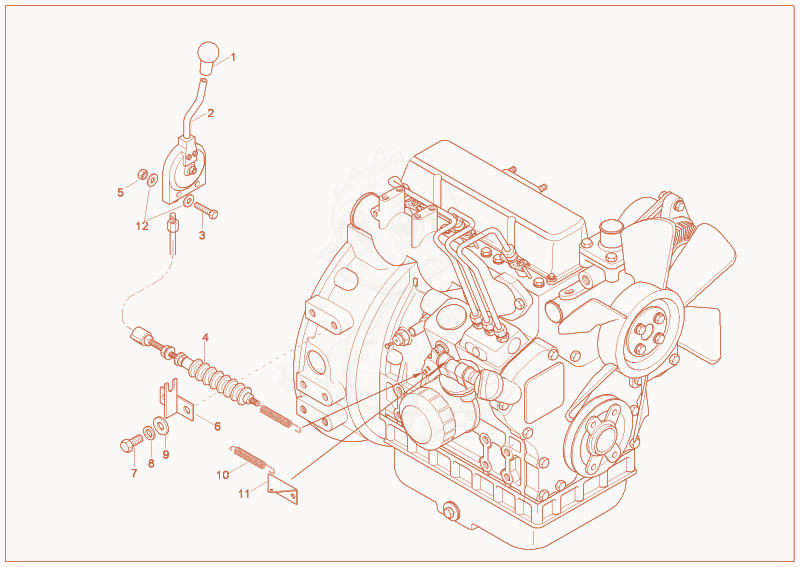

Exploded parts diagram of the speed actuating of a Wacker Neuson 1703, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000098167
    $30.34
    handle - 1000098167×1
  • 21000286876
    $330.85
    Throttle lever - 1000286876×1
  • 31000015339Not stocked
    hex screw×2
  • 41000066092Not stocked
    accelerator cable×1
  • 51000015413Not stocked
    hexagon nut×2
  • 61000064535Not stocked
    throttle cable bracket×1
  • 71000013008Not stocked
    hex screw×2
  • 81000015437Not stocked
    lock washer×2
  • 91000015431Not stocked
    washer×2
  • 101000019803Not stocked
    tension spring×1
  • 111000064538Not stocked
    fasten plate×1
  • 121000015430Not stocked
    washer×4
