WN Excavator 1703

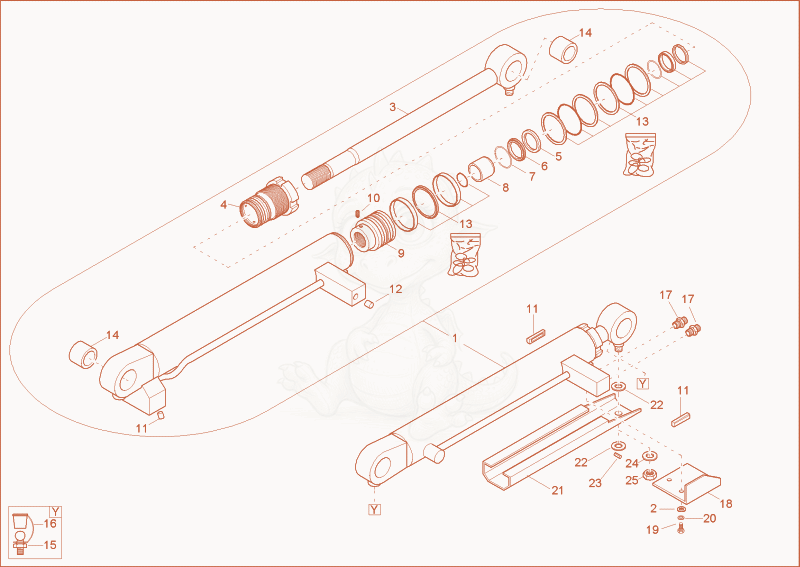

1703 boom cylinder Diagram
- Liftingarmcylinder 1000186262×1
- 21000015431Not stockedwasher×2
- 31000066680Not stockedpiston rod×1
- GUIDE BUSHING - 1000066687×1
- 51000064802Not stockedshock absorber ring×1
- FASTENRING - 1000064803×1
- LOCK RING - 1000082760×1
- 81000068610Not stockedbushing shock absorber×1
- 91000069228Not stockedpiston×1
- 101000015384Not stockedthread pin×1
- GUIDE-ELEMENT - 1000012980×2
- 121000082784Not stockedballexpander×1
- CYLINDER SEAL KIT - 1000019159×1
- steel bushing - 1000015618×2
- 151000015475Not stockedgrease nipple×2
- 161000015480Not stockedcap grease nipple×2
- 171000015491Not stockedscrew joint×2
- 181000064705Not stockedprotection plate liftbeamram×1
- 191000019136Not stockedhex screw×2
- 201000015437Not stockedlock washer×2
- 211000022642Not stockedprotecting rail×1
- washer 19 - 1000082625×2
- cotter pin 5x36 - 1000082719×1
- 241000049219Not stockedwasher×1
- 251000020127Not stockedhexagon nut×1
