WN Excavator 1703

1703 DOZER BLADE CYLINDER (OPTION) Diagram

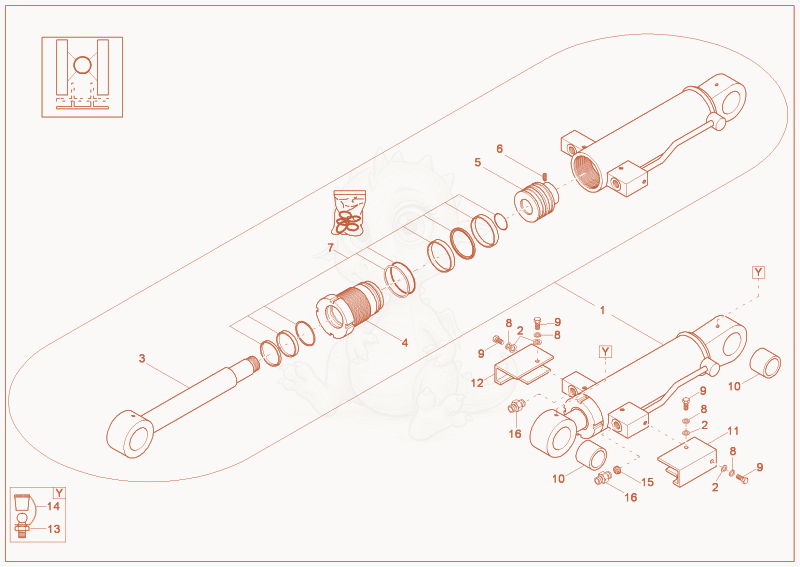

Exploded parts diagram of the DOZER BLADE CYLINDER (OPTION) of a Wacker Neuson 1703, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000186484Not stocked
    blade cylinder×1
  • 21000015431Not stocked
    washer×4
  • 31000066699Not stocked
    piston rod×1
  • 41000066696Not stocked
    guide bushing×1
  • 51000066697Not stocked
    piston×1
  • 61000015384Not stocked
    thread pin×1
  • 71000066757Not stocked
    cylinder seal kit×1
  • 81000015437Not stocked
    lock washer×4
  • 91000085389
    $0.73
    hex screw M8x12-8.8 A2C DIN933 - 1000085389×4
  • 101000015614
    $12.93
    steel bushing - 1000015614×2
  • 111000064710Not stocked
    protection plate×1
  • 121000064709Not stocked
    protection plate×1
  • 131000015475Not stocked
    grease nipple×2
  • 141000020783Not stocked
    cap grease nipple×2
  • 151000066461Not stocked
    hose burst protection×1
  • 161000015489Not stocked
    screw joint×2
