WN Excavator 1703

1703 boom offset cylinder Diagram

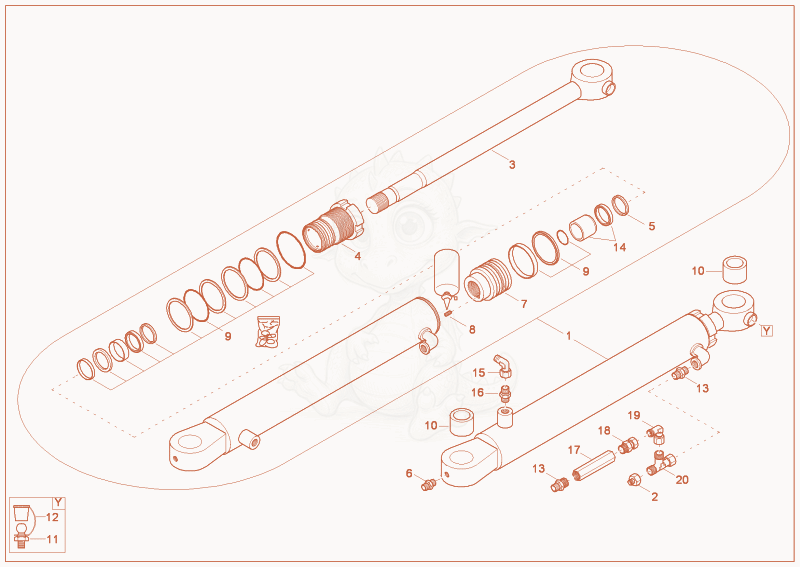

Exploded parts diagram of the boom offset cylinder of a Wacker Neuson 1703, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000186265Not stocked
    boom offset cylinder×1
  • 21000015531Not stocked
    screw joint×1
  • 31000066682Not stocked
    piston rod×1
  • 41000068604Not stocked
    guide bushing×1
  • 51000068605Not stocked
    fastenring×1
  • 61000015532Not stocked
    screw joint×1
  • 71000066684Not stocked
    piston×1
  • 81000015384Not stocked
    thread pin×1
  • 91000066758Not stocked
    cylinder seal kit×1
  • 101000015615Not stocked
    steel bushing×2
  • 111000015475Not stocked
    grease nipple×1
  • 121000015480Not stocked
    cap grease nipple×1
  • 131000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×2
  • 141000146096Not stocked
    shock absorber×1
  • 151000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 161000015489Not stocked
    screw joint×1
  • 171000104541
    $80.99
    non return valve - 1000104541×1
  • 181000015520
    $9.44
    EGE12LREDA3C - 1000015520×1
  • 191000000573Not stocked
    screw joint×1
  • 201000015516
    $13.63
    EL12LOMDA3C - 1000015516×1
