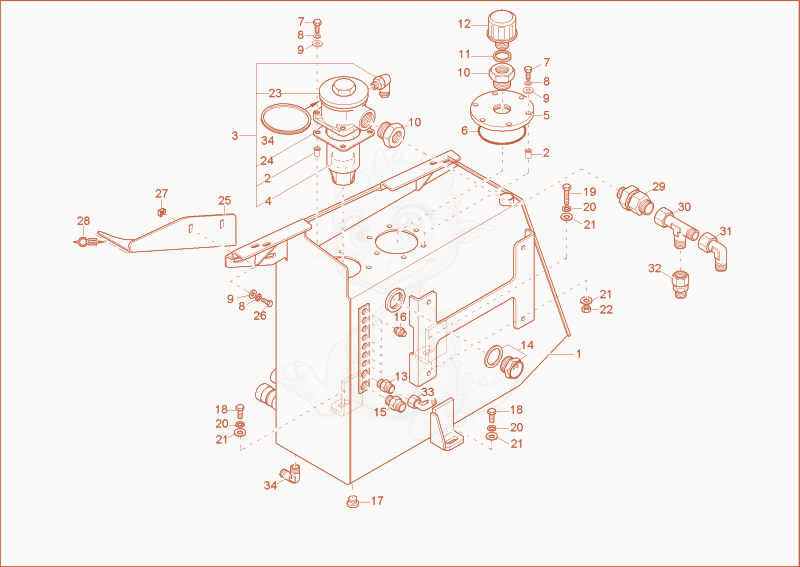

3802WD hydraulic tank Diagram
- 11000070993Not stockedhydraulic tank×1
- 21000082550Not stockedblind rivet nut×10
- FILTER-REFLUX - 1000004582×1
- 41000004583Not stockedreflux filter insert×1
- 51000070990Not stockedoil tank cap×1
- 61000015679Not stockedo-ring×1
- 71000015343Not stockedhex screw×10
- 81000015437Not stockedlock washer×12
- 91000015431Not stockedwasher×12
- WV08OMDA3C - 1000015541×2
- 111000015666Not stockedseal ring×1
- 121000012522Not stockedventing filter×1
- GE12LREDOMDA3C - 1000015492×1
- 141000002989Not stockedview glass×1
- GE22LR1/2EDOMDA3C - 1000082865×1
- 161000015488Not stockedscrew joint×7
- 171000020797Not stockedscrew joint×1
- 181000015364Not stockedhex screw×2
- hex screw - 1000085414×3
- 201000015438Not stockedlock washer×3
- Washer 10,5 St A2C - 1000092303×4
- 221000015407Not stockedhexagon nut×1
- 231000069517Not stockedcover back flow filter×1
- 241000004584Not stockedpernunan seal×1
- 251000071007Not stockedseal plate×1
- 261000019136Not stockedhex screw×2
- 271000015425Not stockedcage nut×2
- 281000017845Not stockedrubber profile×0.2
- 291000083133Not stockednon return valve×1
- EL22LOMDA3C - 1000085045×1
- EW22LOMD - 1000020261×1
- 321000021218Not stockedscrew joint×1
- 331000000573Not stockedscrew joint×1
- 341000004585Not stockedo-ring×1
