HP hose

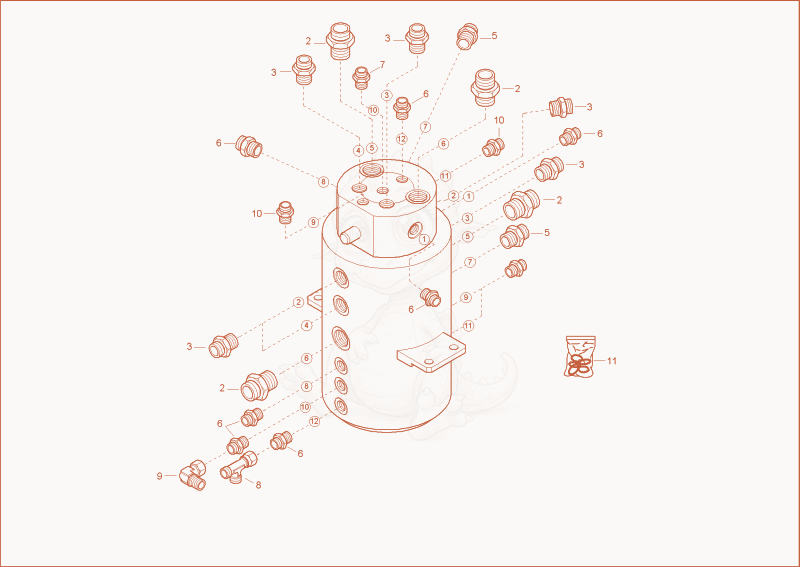

3802WD turning joint Diagram

Exploded parts diagram of the turning joint of a Wacker Neuson 3802WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000074809Not stocked
    rotary junction×1
  • 21000082865
    $12.60
    GE22LR1/2EDOMDA3C - 1000082865×4
  • 31000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×6
  • 41000085128
    $3.13
    GE12LR1/4EDOMDA3C - 1000085128×2
  • 51000015489Not stocked
    screw joint×2
  • 61000015488Not stocked
    screw joint×7
  • 71000082845
    $5.76
    GE08L1/4NPTA3CX - 1000082845×1
  • 81000015515Not stocked
    screw joint×1
  • 91000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 101000015490Not stocked
    screw joint×2
  • 111000113166
    $486.42
    SEAL KIT SWIVEL JOINT - 1000113166×1
