3802WD oil cooler Diagram

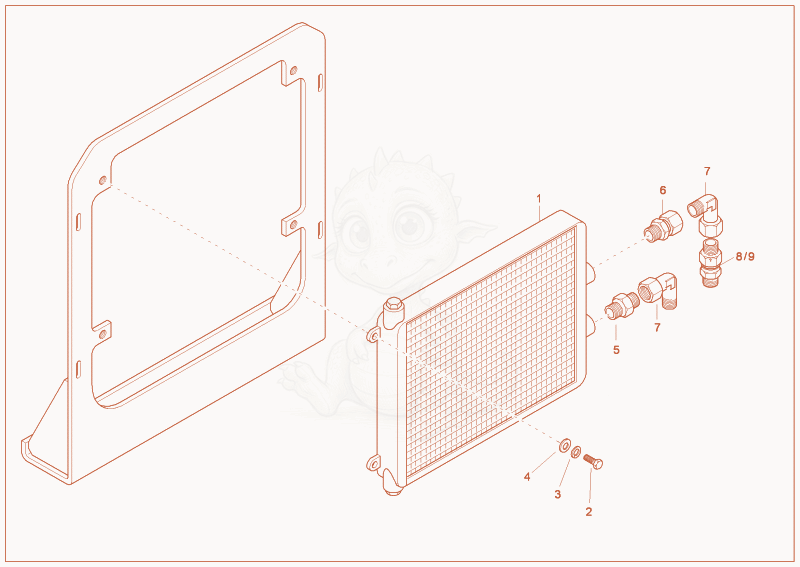

Exploded parts diagram of the oil cooler of a Wacker Neuson 3802WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000147383
    $1,360.46
    Oilcooler 1000147383×1
  • 21000013008Not stocked
    hex screw×4
  • 31000015437Not stocked
    lock washer×4
  • 41000013027Not stocked
    washer×4
  • 51000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×1
  • 61000015524
    $9.05
    EGE18LREDA3C - 1000015524×1
  • 71000015513Not stocked
    screw joint×2
  • 81000015569Not stocked
    non return valve×1
  • 91000015570Not stocked
    non return valve×1
