HP hose

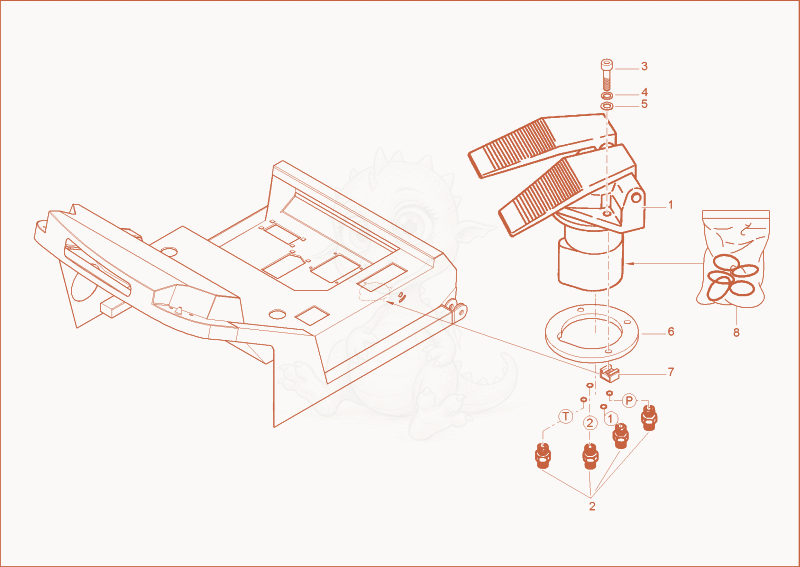

3802WD driving valve Diagram

Exploded parts diagram of the driving valve of a Wacker Neuson 3802WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000072225
    $564.61
    Pilotvalve 1000072225×1
  • 21000015488Not stocked
    screw joint×4
  • 31000085460
    $0.19
    cheese head screw - 1000085460×3
  • 41000015436Not stocked
    lock washer×3
  • 51000015430Not stocked
    washer×3
  • 61000150585Not stocked
    distance plate×1
  • 71000094952
    $0.75
    cage nut M6 2,6-3,5 - 1000094952×3
  • 81000072355
    $758.96
    seal kit drive valve - 1000072355×1
