HP hose

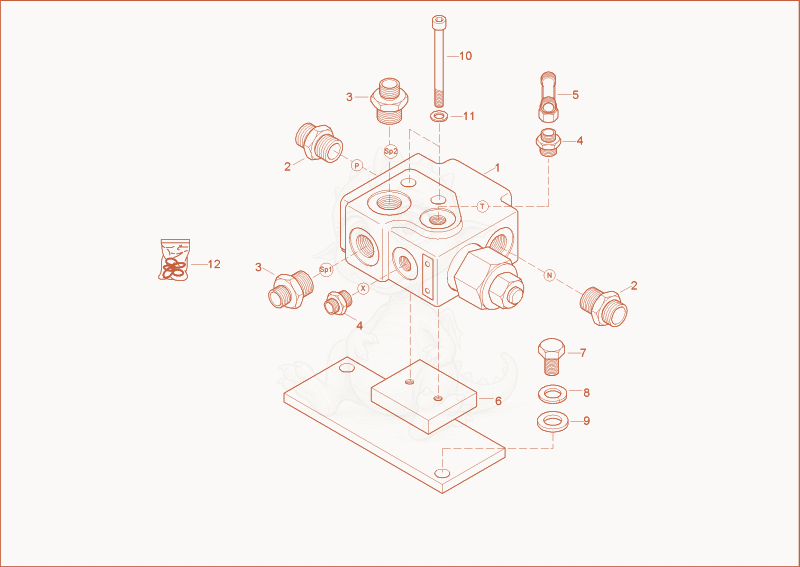

3802WD accumulator loading valve Diagram

Exploded parts diagram of the accumulator loading valve of a Wacker Neuson 3802WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000085035
    $2,007.35
    Accumulatorloadingvalve 1000085035×1
  • 21000085132
    $3.34
    GE15LM18X1,5EDOMDA3C - 1000085132×2
  • 31000085051
    $6.62
    GE12LM18X1,5EDOMDA3C - 1000085051×2
  • 41000085090
    $2.13
    GE08LMEDOMDA3C - 1000085090×2
  • 51000015518
    $8.71
    ET08LOMDA3C - 1000015518×1
  • 61000071506Not stocked
    accumulatorload valve plate×1
  • 71000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 81000015438Not stocked
    lock washer×2
  • 91000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 101000015365Not stocked
    cheese head screw×2
  • 111000015436Not stocked
    lock washer×2
  • 121000072353
    $59.69
    SEAL KIT LOADING VALVE - 1000072353×1
