Excavator 50Z3

50Z3 swivel drive Diagram

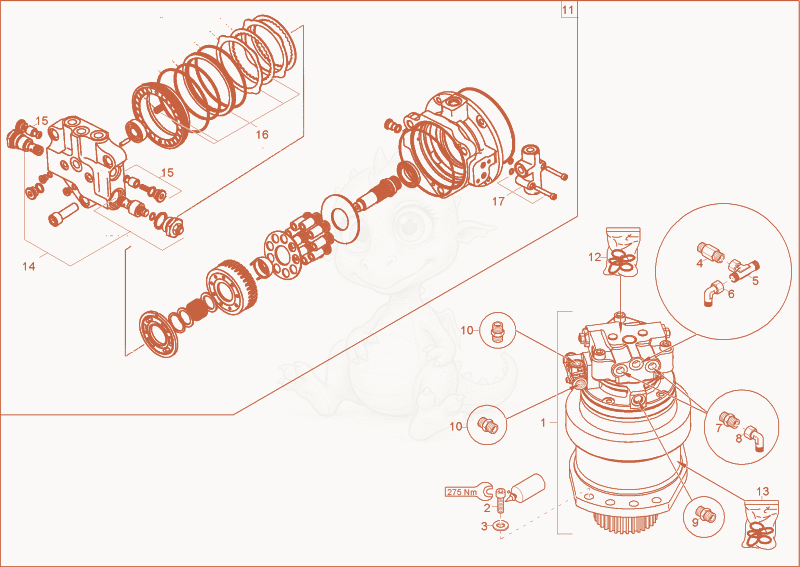

Exploded parts diagram of the swivel drive of a Wacker Neuson 50Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000104182
    $10,610.85
    Swiveldrive 1000104182×1
  • 21000015383Not stocked
    cheese head screw×8
  • 31000015451Not stocked
    northlock disc×8
  • 41000112357
    $49.74
    screw connection - 1000112357×1
  • 51000085077
    $20.59
    ET18LOMDA3C - 1000085077×1
  • 61000015513Not stocked
    screw joint×1
  • 71000083023
    $8.35
    GE15LR3/8OROMDA3C - 1000083023×2
  • 81000015512Not stocked
    screw joint×2
  • 91000082969
    $4.07
    GE12LR3/8OROMDA3C - 1000082969×1
  • 101000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×2
  • 111000063876Not stocked
    swivel motor×1
  • 121000072581
    $157.30
    seal kit rotary motor - 1000072581×1
  • 131000117940
    $279.55
    SEAL KIT - 1000117940×1
  • 141000072580
    $798.40
    shock valve - 1000072580×1
  • 151000070122Not stocked
    slewing motor valve set×1
  • 161000069382Not stocked
    motor brake kit×1
  • 171000069380Not stocked
    timer valve×1
