Excavator 50Z3

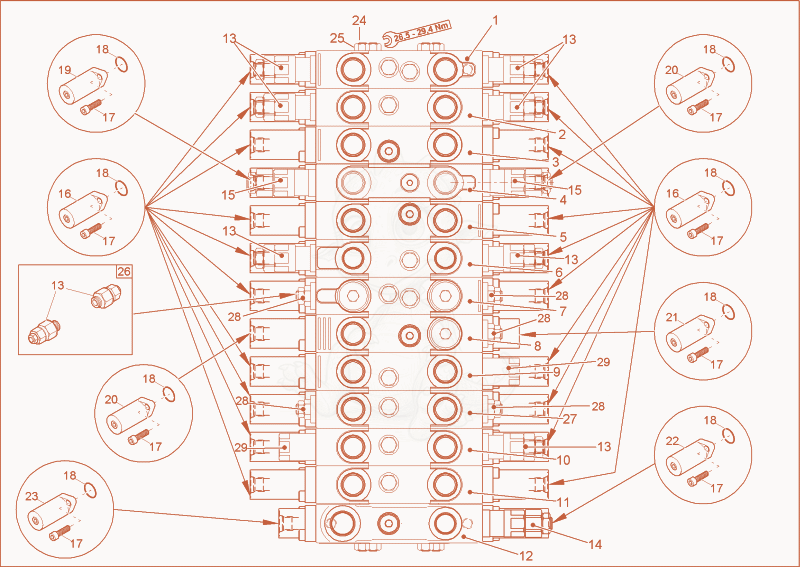

50Z3 CONTROL VALVE 2 (OPTION) Diagram

Exploded parts diagram of the CONTROL VALVE 2 (OPTION) of a Wacker Neuson 50Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000125152
    $1,159.42
    Bucketsegment 1000125152×1
  • 21000125157
    $1,053.15
    Liftingboomsegment 1000125157×1
  • 31000125154
    $1,018.14
    Travelsegment 1000125154×1
  • 41000125160
    $885.01
    Inputsegment 1000125160×1
  • 51000125181
    $1,018.14
    Travelsegment 1000125181×1
  • 61000125182
    $1,108.03
    Bucketsticksegment 1000125182×1
  • 71000125183
    $969.80
    Supplyhydraulicsegment 1000125183×1
  • 81000125185
    $809.14
    Exitsegment 1000125185×1
  • 91000125187
    $951.83
    Swivelsegment 1000125187×1
  • 101000125189
    $2,480.71
    dozer blade segment - 1000125189×1
  • 111000125190
    $1,025.16
    Rotarysegment 1000125190×1
  • 121000125201
    $1,132.55
    Cauxiliarysegment 1000125201×1
  • 131000069344Not stocked
    secondary cartridge×8
  • 141000125203
    $483.45
    main pressure limiter - 1000125203×1
  • 151000125204
    $342.19
    main pressure limiter - 1000125204×2
  • 161000125205
    $72.90
    valve cap - 1000125205×20
  • 171000125206
    $4.44
    SCREW - 1000125206×52
  • 181000021889
    $3.15
    O-RING - 1000021889×26
  • 191000125208
    $234.61
    valve cap - 1000125208×1
  • 201000125209
    $238.98
    valve cap - 1000125209×2
  • 211000125210
    $67.25
    valve cap - 1000125210×1
  • 221000125222
    $108.27
    valve cap - 1000125222×1
  • 231000125223
    $134.41
    valve cap - 1000125223×1
  • 241000143896
    $88.17
    TIE ROD - 1000143896×4
  • 251000125226
    $7.44
    NUT - 1000125226×8
  • 261000143244
    $544.18
    retrofit kit shockcartridge - 1000143244×1
  • 271000158539
    $1,173.45
    Segment 1000158539×1
  • 281000152582
    $59.06
    block valve - 1000152582×5
  • 291000069360Not stocked
    non return valve×2
