Excavator 50Z3

50Z3 maintenance package (1000h) Diagram

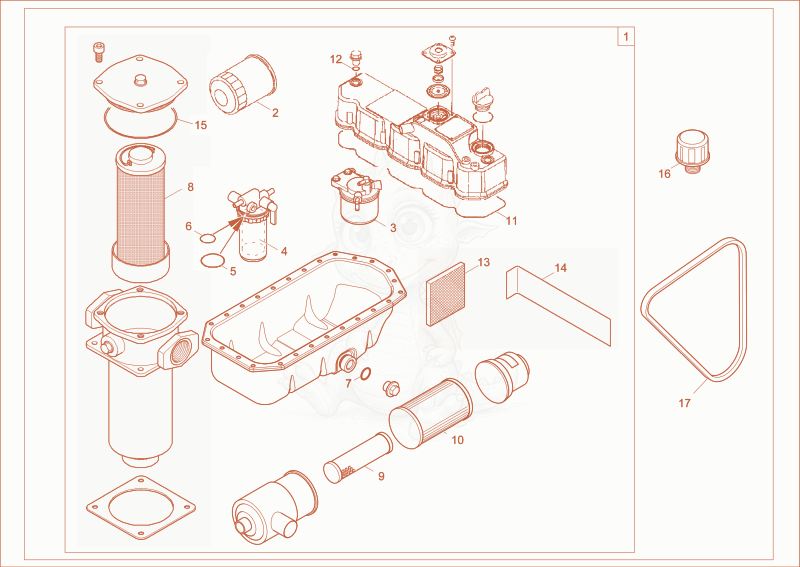

Exploded parts diagram of the maintenance package (1000h) of a Wacker Neuson 50Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000124486Not stocked
    service kit×1
  • 21000018587Not stocked
    engine oil filter×1
  • 31000379275Not stocked
    fuel filter×1
  • 41000106892
    $30.76
    water seperator element - 1000106892×1
  • 51000069998Not stocked
    gasket filter housing×1
  • 61000064543
    $1.72
    O-RING - 1000064543×1
  • 71000070003
    $2.73
    O-Ring - 1000070003×1
  • 81000012847Not stocked
    reflux filter insert×1
  • 91000004567Not stocked
    airfilter insert×1
  • 101000052549Not stocked
    filter cartridge×1
  • 111000106273
    $60.39
    VALVE COVER SEAL - 1000106273×1
  • 121000003894
    $0.29
    O-RING - 1000003894×3
  • 131000115808
    $16.02
    air cleaner - 1000115808×1
  • 141000109215
    $20.69
    circulation filter - 1000109215×1
  • 151000083482
    $3.92
    O-Ring - 1000083482×1
  • 161000261957
    $33.36
    venting filter (0,2bar) - 1000261957×1
  • 171000108042
    $36.06
    V-BELT - 1000108042×1
