Excavator 50Z3

50Z3 HYDRAULIC PUMP DRIVE Diagram

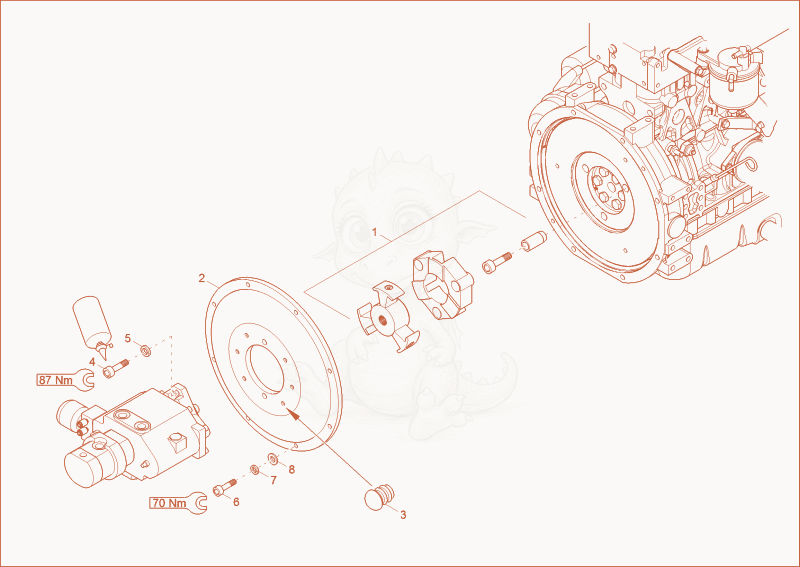

Exploded parts diagram of the HYDRAULIC PUMP DRIVE of a Wacker Neuson 50Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000069179
    $300.86
    COUPLING - 1000069179×1
  • 21000069385Not stocked
    pump carrier×1
  • 31000082836
    $2.84
    clutch disc plug - 1000082836×1
  • 41000015347Not stocked
    hex screw×2
  • 51000015450Not stocked
    northlock disc×2
  • 61000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×8
  • 71000015438Not stocked
    lock washer×8
  • 81000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×8
