Excavator 50Z3

50Z3 chassis Diagram

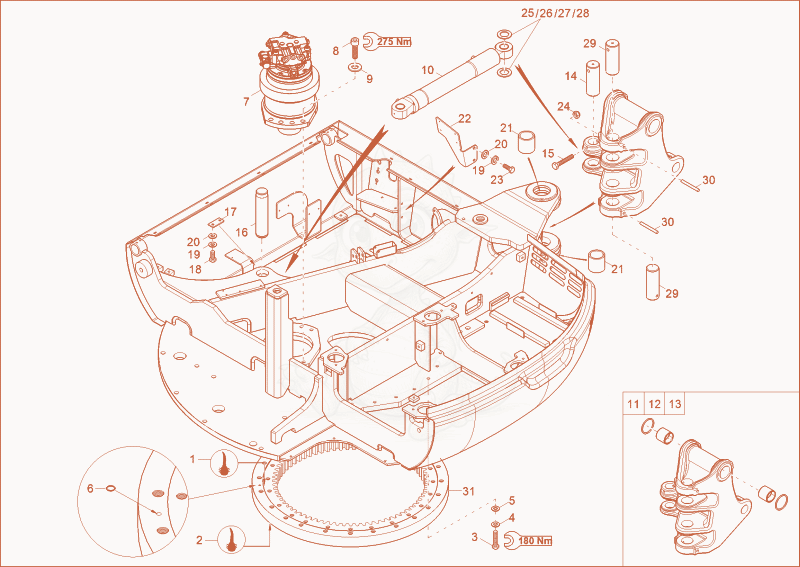

Exploded parts diagram of the chassis of a Wacker Neuson 50Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000097244
    $54.76
    gasket slewing gear - 1000097244×2.2
  • 21000097244
    $54.76
    gasket slewing gear - 1000097244×2.2
  • 31000082301
    $2.01
    HEX SCREW - 1000082301×24
  • 41000015443Not stocked
    lock washer×24
  • 51000019126Not stocked
    u-washer×24
  • 61000095054
    $1.38
    O-RING - 1000095054×1
  • 71000104182
    $10,610.85
    Swiveldrive 1000104182×1
  • 81000015383Not stocked
    cheese head screw×8
  • 91000015451Not stocked
    northlock disc×8
  • 101000186495
    $1,854.81
    Boomoffsetcylinderez53 1000186495×1
  • 111000183089
    $2,855.92
    swivel console premounted - 1000183089×1
  • 121000183090
    $4,009.31
    Swingbracket 1000183090×1
  • 131000183111
    $4,089.49
    Swingbracket 1000183111×1
  • 141000114347
    $44.73
    Pin 1000114347×1
  • 151000110016
    $8.13
    cotter pin - 1000110016×1
  • 161000108530
    $101.52
    Pin 1000108530×1
  • 171000115114
    $36.12
    bracket axle - 1000115114×1
  • 181000015364Not stocked
    hex screw×2
  • 191000015438Not stocked
    lock washer×4
  • 201000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 211000109609
    $43.54
    STEEL BUSHING - 1000109609×2
  • 221000117965
    $127.99
    console - 1000117965×1
  • 231000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 241000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 251000107906
    $2.45
    shim - 1000107906×1
  • 261000107907
    $2.27
    shim - 1000107907×1
  • 271000107908
    $7.39
    shim - 1000107908×1
  • 281000112129
    $4.06
    shim - 1000112129×1
  • 291000108532
    $59.66
    Pin 1000108532×2
  • 301000116614
    $10.27
    cotter pin - 1000116614×2
  • 311000111958
    $9,816.10
    Slewingring 1000111958×1
