Excavator 50Z3

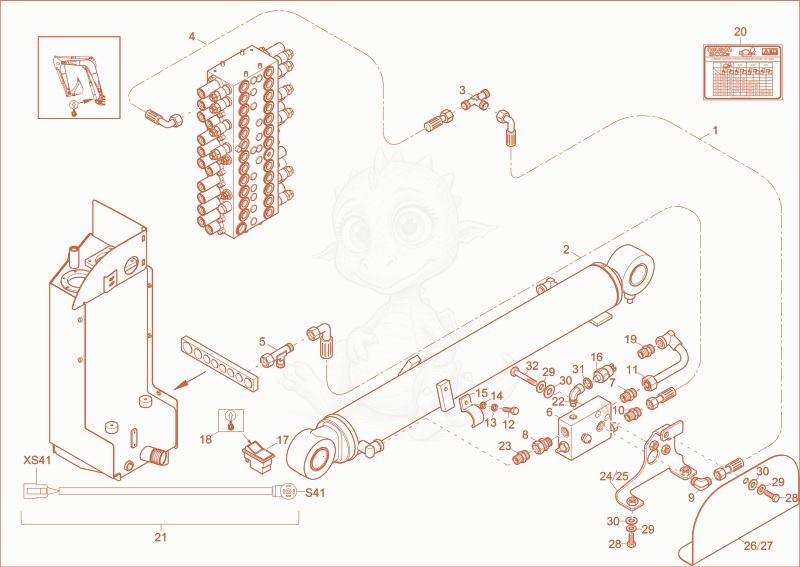

50Z3 STALLING LOAD - WARNING DEVICE (OPTION) Diagram
- SLHYDR 492T6,0PN8 90 PN8 0 L3200 S0 - 1000355096×1
- 21000355097Not stockedHose×1
- 31000015534Not stockedscrew joint×1
- 41000016759Not stockedHose×1
- 51000015515Not stockedscrew joint×1
- 61000115074Not stockedhose burst valve×1
- GE18LR1/2EDOMDA3C - 1000082979×1
- EGE18LREDA3C - 1000015524×1
- WEE8LROMDA3C - 1000060903×1
- 101000015488Not stockedscrew joint×1
- 111000117030Not stockedhydraulic pipe×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
- 131000015438Not stockedlock washer×1
- washer 10,5 A2C DIN125 - 1000015432×1
- 151000015634Not stockedpipe clamp×1
- 161000015301Not stockedpressure switch×1
- tilt switch - 1000081956×1
- 181000081958Not stockedsymbol overload warning×1
- 191000015494Not stockedscrew joint×1
- sticker lift - 1000124258×1
- cable overloadwarning - 1000245140×1
- WEE1/4"-1/4" - 1000251624×1
- GE18LR1/2EDOMDA3C - 1000082979×1
- PLATE - 1000246972×1
- plate - 1000255732×1
- PROTECTION PLATE - 1000246890×1
- protection plate - 1000255670×1
- 281000019136Not stockedhex screw×3
- 291000015437Not stockedlock washer×5
- 301000015431Not stockedwasher×5
- Hexagon nut M8, DIN 929 - 1000085597×3
- 321000015380Not stockedhex screw×2
- 331000013021Not stockedhexagon nut×2
- screw seal - 1000124948×1
- socket - 1000245870×1
- pin housing - 1000081808×1
