WN Excavator 6003

6003 chassis Diagram

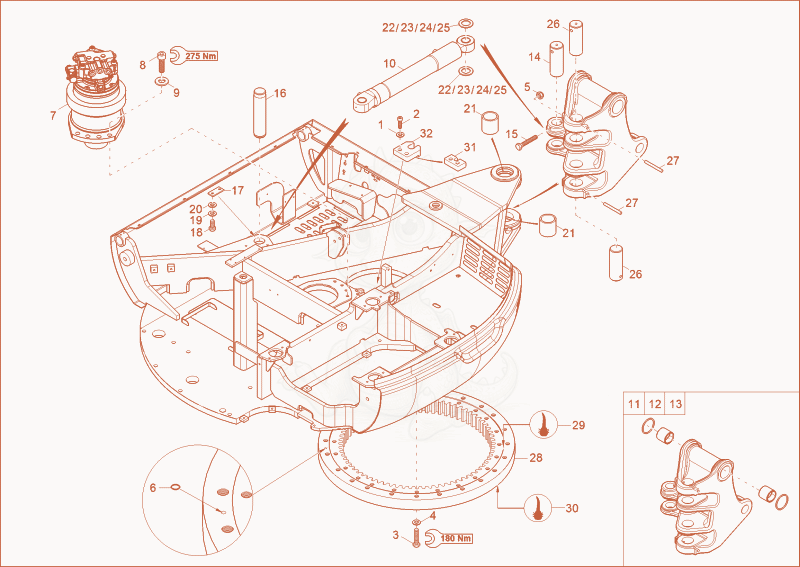

Exploded parts diagram of the chassis of a Wacker Neuson 6003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000015450Not stocked
    northlock disc×2
  • 21000015382Not stocked
    hex screw×2
  • 31000082284
    $2.51
    hex screw - 1000082284×24
  • 41000020820
    $3.19
    WASHER - 1000020820×24
  • 51000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 61000095054
    $1.38
    O-RING - 1000095054×1
  • 71000104183
    $13,542.02
    Swiveldrive 1000104183×1
  • 81000015383Not stocked
    cheese head screw×8
  • 91000015451Not stocked
    northlock disc×8
  • 101000186495
    $1,854.81
    Boomoffsetcylinderez53 1000186495×1
  • 111000183112
    $7,152.17
    Swivelconsolepremounted 1000183112×1
  • 121000183113
    $5,010.51
    Swivelconsolepremounted 1000183113×1
  • 131000183114
    $7,638.25
    Swivelconsolepremounted 1000183114×1
  • 141000114347
    $44.73
    Pin 1000114347×1
  • 151000085322
    $1.31
    hex screw - 1000085322×1
  • 161000108530
    $101.52
    Pin 1000108530×1
  • 171000115114
    $36.12
    bracket axle - 1000115114×1
  • 181000015348Not stocked
    hex screw×2
  • 191000015438Not stocked
    lock washer×2
  • 201000049219Not stocked
    washer×2
  • 211000109750
    $74.65
    steel bushing - 1000109750×2
  • 221000107906
    $2.45
    shim - 1000107906×1
  • 231000107907
    $2.27
    shim - 1000107907×1
  • 241000107908
    $7.39
    shim - 1000107908×1
  • 251000112129
    $4.06
    shim - 1000112129×1
  • 261000109737
    $158.88
    Pin70X162 1000109737×2
  • 271000116614
    $10.27
    cotter pin - 1000116614×2
  • 281000012316Not stocked
    slewing ring×1
  • 291000097244
    $54.76
    gasket slewing gear - 1000097244×2.5
  • 301000097244
    $54.76
    gasket slewing gear - 1000097244×2.5
  • 311000124079
    $32.73
    torque support - 1000124079×1
  • 321000101846
    $39.35
    TORQUE SUPPORT - 1000101846×1
