WN Excavator 6003

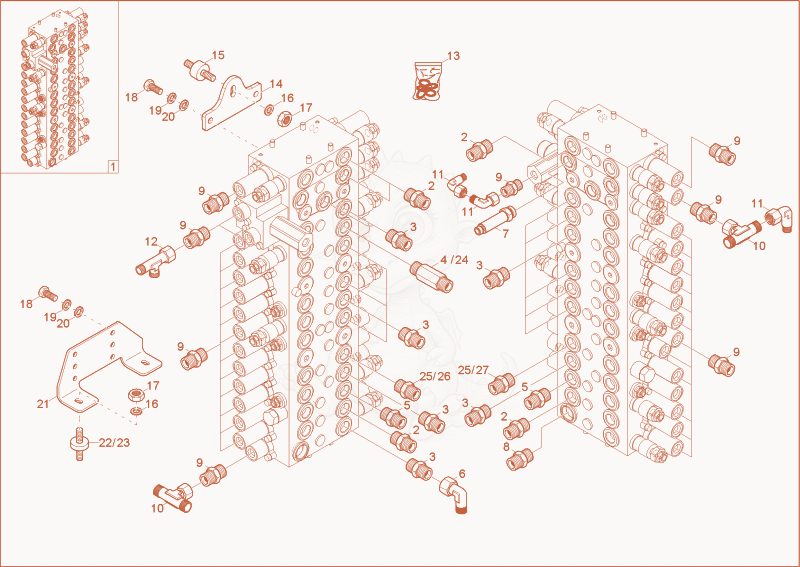

6003 CONTROL VALVE 1 (OPTION) Diagram

Exploded parts diagram of the CONTROL VALVE 1 (OPTION) of a Wacker Neuson 6003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000147380
    $8,866.39
    Controlblock 1000147380×1
  • 21000082964
    $5.16
    GE15LR1/2OROMDA3C - 1000082964×5
  • 31000083048
    $6.80
    GE18LR1/2OROMDA3C - 1000083048×15
  • 41000082974
    $24.34
    GE18LR1/2OROMDA3C L=77MM - 1000082974×1
  • 51000082970
    $10.84
    GE12LR1/2OROMDA3C - 1000082970×2
  • 61000015513Not stocked
    screw joint×1
  • 71000112355
    $37.54
    screw connection - 1000112355×1
  • 81000082977
    $36.29
    GE22LR3/4OROMDA3C - 1000082977×1
  • 91000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×30
  • 101000015518
    $8.71
    ET08LOMDA3C - 1000015518×2
  • 111000000542
    $11.08
    EW08LOMD - 1000000542×3
  • 121000015515Not stocked
    screw joint×2
  • 131000146024
    $327.46
    SEAL KIT CONTROL VALVE - 1000146024×1
  • 141000108286
    $18.63
    fasten plate - 1000108286×1
  • 151000079864
    $10.46
    METAL- RUBBER BUFFER - 1000079864×1
  • 161000015434Not stocked
    washer×3
  • 171000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×3
  • 181000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 191000015438Not stocked
    lock washer×4
  • 201000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 211000110307
    $55.67
    Anglebracket 1000110307×1
  • 221000079864
    $10.46
    METAL- RUBBER BUFFER - 1000079864×2
  • 231000132877
    $28.50
    METAL- RUBBER BUFFER - 1000132877×2
  • 241000132878
    $32.14
    GE18LR1/2OROMDA3C L=92MM - 1000132878×1
  • 251000082970
    $10.84
    GE12LR1/2OROMDA3C - 1000082970×2
  • 261000128862
    $26.36
    GE08LR1/2OROMDA3C - 1000128862×1
  • 271000141556
    $31.11
    GE10LR1/2OROMDA3C - 1000141556×1
