WN Excavator 6003

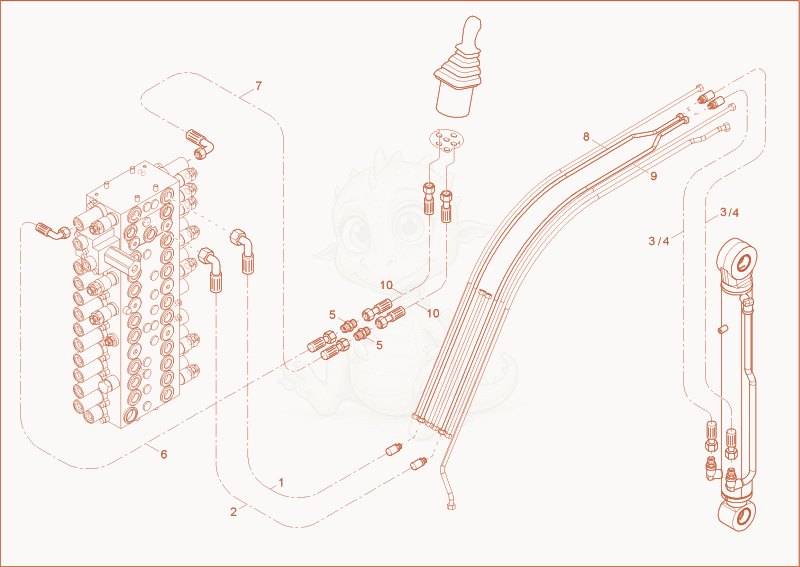

6003 BUCKET OPERATION (DIPPER ARM LONG) Diagram

Exploded parts diagram of the BUCKET OPERATION (DIPPER ARM LONG) of a Wacker Neuson 6003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000114302
    $161.70
    SLHYDR 2SC+13 PN15 90 PD18 0 L3100 S0 - 1000114302×1
  • 21000114303
    $174.24
    SLHYDR 2SC+13 PN15 90 PD18 0 L3100 S0 - 1000114303×1
  • 31000127419Not stocked
    Hose×2
  • 41000166082
    $99.73
    SLHYDR 2SC+16 PN18 0 PD18 0 L1850 - 1000166082×2
  • 51000015545
    $2.43
    G08LA3CX - 1000015545×2
  • 61000016759Not stocked
    Hose×1
  • 71000358743Not stocked
    Hose×1
  • 81000109534
    $225.71
    hydraulic pipe - 1000109534×1
  • 91000109533
    $225.71
    hydraulic pipe - 1000109533×1
  • 101000111742
    $60.67
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2100 0 - 1000111742×2
