WN Excavator 6003

6003 INST. LUFFING BOOM+3. HYDRAULIC CIRCUIT Diagram

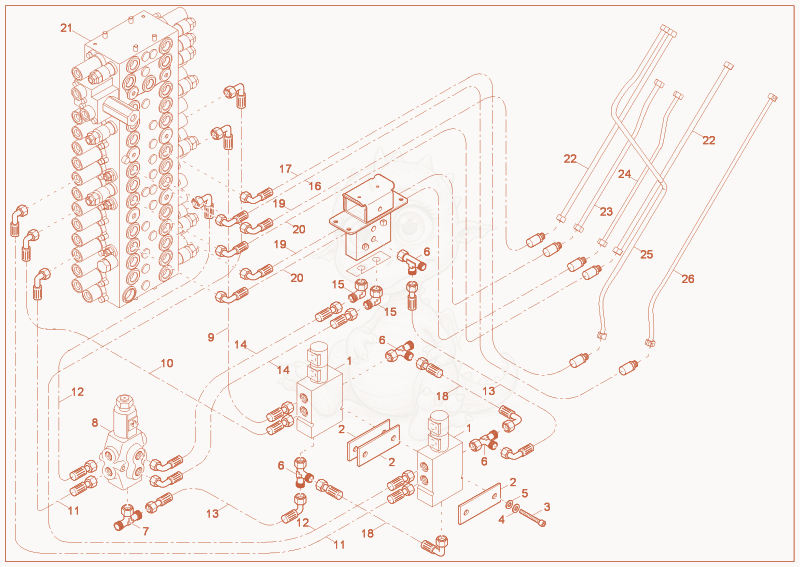

Exploded parts diagram of the INST. LUFFING BOOM+3. HYDRAULIC CIRCUIT of a Wacker Neuson 6003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000075965
    $740.34
    VALVE - 1000075965×2
  • 21000071507
    $13.00
    plate - 1000071507×3
  • 31000085492
    $14.18
    cheese head screw - 1000085492×2
  • 41000015436Not stocked
    lock washer×2
  • 51000015430Not stocked
    u-washer×2
  • 61000015515Not stocked
    screw joint×4
  • 71000015518
    $8.71
    ET08LOMDA3C - 1000015518×1
  • 81000004689Not stocked
    change over valve×1
  • 91000106498
    $22.02
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2500 0 - 1000106498×1
  • 101000076336
    $21.03
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2100 0 - 1000076336×1
  • 111000358743Not stocked
    Hose×2
  • 121000112772
    $36.43
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2600 0 - 1000112772×2
  • 131000076662
    $11.02
    SLHYDR 1SCP6,0PN8 0 PN8 90 L600,0 0 - 1000076662×2
  • 141000076661
    $30.82
    SLHYDR 1SCP6,0PN8 0 PN8 90 L500,0 0 - 1000076661×1
  • 151000000542
    $11.08
    EW08LOMD - 1000000542×2
  • 161000144290
    $250.79
    SLHYDR 2SC+16 PN18 90 PD18 0 L2770 S0 - 1000144290×1
  • 171000144341
    $249.43
    SLHYDR 2SC+16 PN18 90 PD18 0 L2770 S0 - 1000144341×1
  • 181000117932
    $23.86
    SLHYDR 1SCP6,0PN8 90 PN8 0 L300,0 0 - 1000117932×2
  • 191000114300
    $163.65
    SLHYDR 2SC+16 PN18 90 PD18 0 L3100 S0 - 1000114300×2
  • 201000114301
    $275.62
    SLHYDR 2SC+16 PN18 90 PD18 0 L3100 S0 - 1000114301×2
  • 211000147380
    $8,866.39
    Controlblock 1000147380×1
  • 221000135085
    $133.05
    pipe line - 1000135085×2
  • 231000135089
    $157.47
    pipe line - 1000135089×1
  • 241000135091
    $157.47
    pipe line - 1000135091×1
  • 251000141608
    $96.57
    pipe line - 1000141608×1
  • 261000141609
    $100.53
    pipe line - 1000141609×1
