WN Excavator 6003

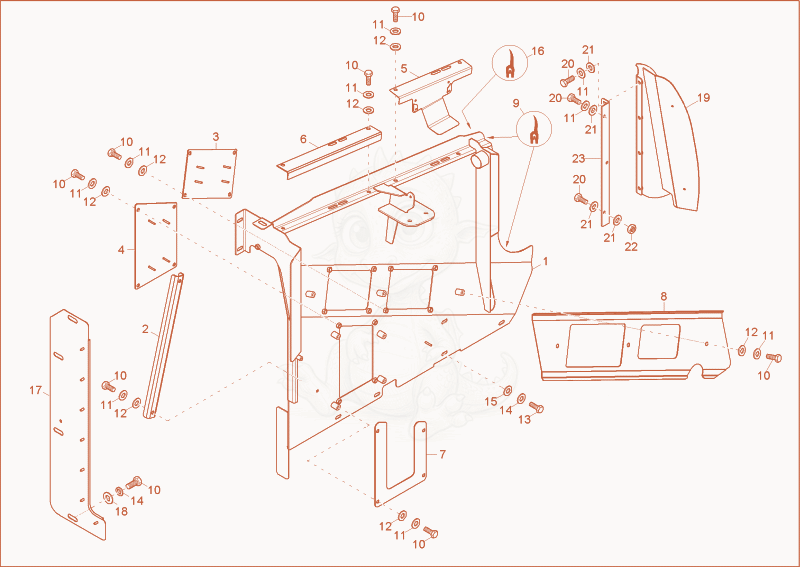

6003 seperating plate Diagram

Exploded parts diagram of the seperating plate of a Wacker Neuson 6003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000152507Not stocked
    seperating plate×1
  • 21000110566
    $45.54
    clamp bar - 1000110566×1
  • 31000110565
    $61.82
    COVER - 1000110565×2
  • 41000110564
    $74.57
    Cover 1000110564×1
  • 51000130329
    $46.92
    angle bracket - 1000130329×1
  • 61000110153
    $11.26
    angle bracket - 1000110153×1
  • 71000116324
    $30.34
    clamp plate - 1000116324×1
  • 81000110569Not stocked
    clamp plate×1
  • 91000097252
    $17.89
    RUBBER PROFILE - 1000097252×2
  • 101000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×29
  • 111000015437Not stocked
    lock washer×30
  • 121000013027Not stocked
    washer×25
  • 131000015348Not stocked
    hex screw×5
  • 141000015438Not stocked
    lock washer×9
  • 151000015434Not stocked
    washer×5
  • 161000097252
    $17.89
    RUBBER PROFILE - 1000097252×1
  • 171000110287
    $190.58
    Bulkplate 1000110287×1
  • 181000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×4
  • 191000179372Not stocked
    plate×1
  • 201000013008Not stocked
    hex screw×7
  • 211000015431Not stocked
    washer×9
  • 221000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 231000180121Not stocked
    angle×1
