WN Excavator 75Z3

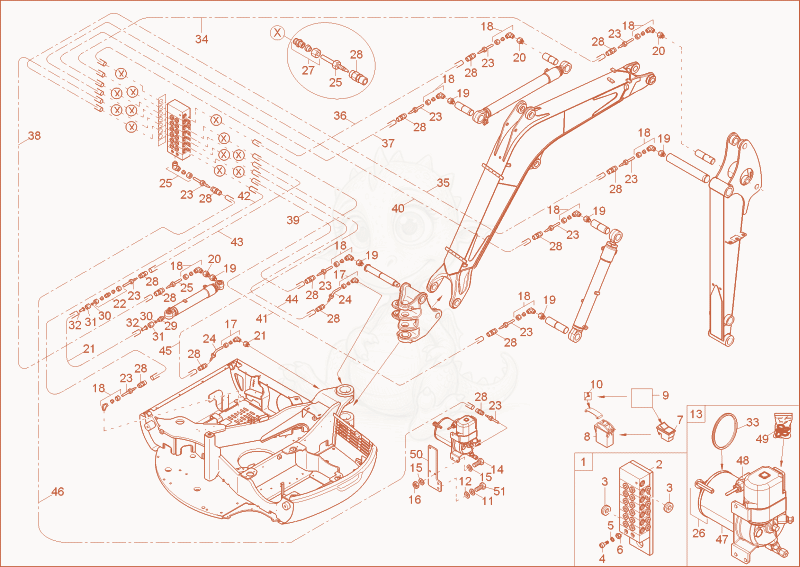

75Z3 LUBRICATION (OPTION) Diagram
- 11000160263Not stockeddistributor combination×1
- fitting plate - 1000159280×1
- lock screw - 1000159281×2
- cheese head screw - 1000082294×2
- washer A 5,3 A2C DIN125 - 1000094962×2
- HEXAGON NUT - 1000085587×2
- 71000069042Not stockedswitch central lubrication×1
- 81000353593Not stockedRocker switch×1
- 91000019031Not stockedsymbol orange×1
- symbol cantral lubrication - 1000164607×1
- 111000015438Not stockedlock washer×2
- washer 10,5 A2C DIN125 - 1000015432×2
- Electropump 1000130201×1
- 6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×3
- 151000015431Not stockedwasher×6
- DIN985-M8-8-A2C - 1000015416×3
- angle screw joint - 1000074430×2
- screw connection - 1000074431×9
- extension - 1000074434×6
- extension - 1000159205×3
- lubrication line PA12 H 6x1,5mm - 1000098195×1.2
- screw connection - 1000074436×1
- pipe cut - 1000099530×11
- pipe cut - 1000099529×2
- pipe cut - 1000142543×13
- 261000160210Not stockedCover×1
- non return valve - 1000143260×12
- screw sleeve - 1000099497×26
- 291000015532Not stockedscrew joint×1
- D6LL - 1000015537×2
- 311000015536Not stockedunion nut×2
- plug sleeve - 1000152581×2
- 331000160221Not stockedseal ring×1
- SLHYDR - 1000142646×4.5
- SLHYDR - 1000142646×3.6
- SLHYDR - 1000142646×4.25
- SLHYDR - 1000142646×1.8
- SLHYDR - 1000142646×3.1
- SLHYDR - 1000142646×1.1
- SLHYDR - 1000142646×2.25
- SLHYDR - 1000142646×2.4
- SLHYDR - 1000142646×4.6
- SLHYDR - 1000142646×4.1
- SLHYDR - 1000142646×2
- SLHYDR - 1000142646×2
- SLHYDR - 1000142646×4.6
- 471000160222Not stockedcontainer×1
- 481000160223Not stockedplug×1
- 491000160224Not stockedseal kit×1
- 501000156102Not stockedBRACKET×1
- 511000015348Not stockedhex screw×2
