WN Excavator 75Z3

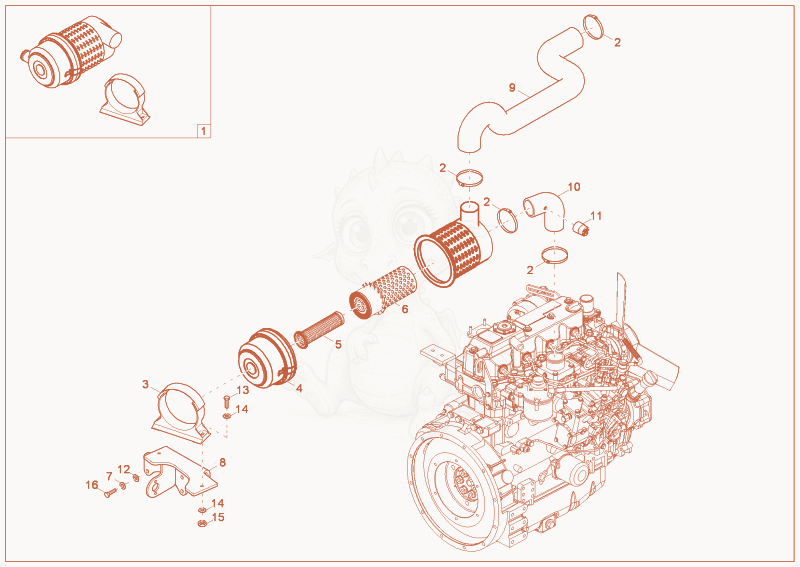

75Z3 air cleaner Diagram

Exploded parts diagram of the air cleaner of a Wacker Neuson 75Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000074198Not stocked
    air cleaner×1
  • 21000083310
    $2.41
    hose clamp 50-70mm - 1000083310×4
  • 31000074213Not stocked
    bracket airfilter×1
  • 41000074217
    $159.36
    cap aircleaner - 1000074217×1
  • 51000022075
    $41.89
    AIRFILTER INSERT - 1000022075×1
  • 61000022076
    $39.62
    AIRFILTER INSERT - 1000022076×1
  • 71000015438Not stocked
    lock washer×3
  • 81000115828Not stocked
    console airfilter×1
  • 91000116155Not stocked
    hose air suction×1
  • 101000116156Not stocked
    hose air suction×1
  • 111000002142Not stocked
    dirt indicator×1
  • 121000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 131000015370Not stocked
    hex screw×2
  • 141000013027Not stocked
    washer×4
  • 151000082567
    $0.73
    HEXAGON NUT - 1000082567×2
  • 161000015348Not stocked
    hex screw×3
