WN Excavator 75Z3

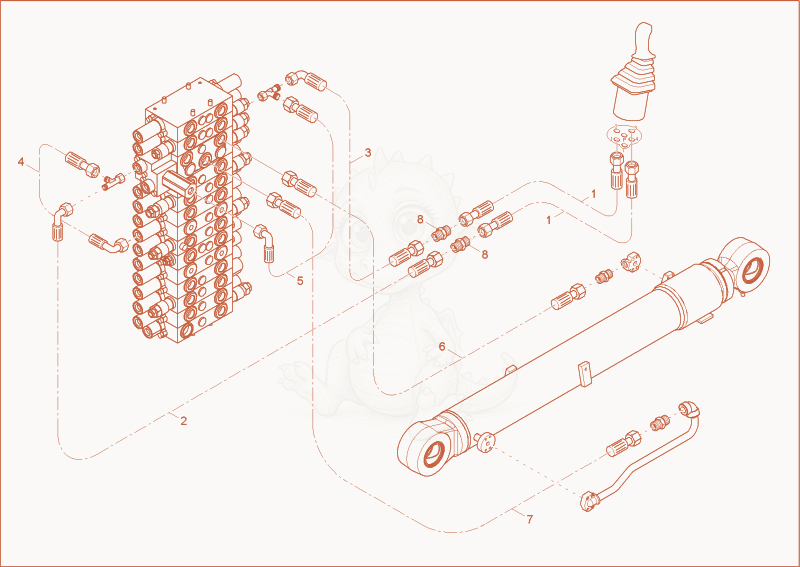

75Z3 LIFTING BOOM OPERATION Diagram

Exploded parts diagram of the LIFTING BOOM OPERATION of a Wacker Neuson 75Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000125485
    $58.60
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2500 0 - 1000125485×2
  • 21000076540
    $71.76
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2600 0 - 1000076540×1
  • 31000358743Not stocked
    Hose×1
  • 41000076333
    $30.82
    SLHYDR 1SCP6,0PN8 0 PN8 90 L400,0 0 - 1000076333×1
  • 51000076661
    $30.82
    SLHYDR 1SCP6,0PN8 0 PN8 90 L500,0 0 - 1000076661×1
  • 61000161001Not stocked
    Hose×1
  • 71000161002Not stocked
    Hose×1
  • 81000015545
    $2.43
    G08LA3CX - 1000015545×2
