WN Excavator 75Z3

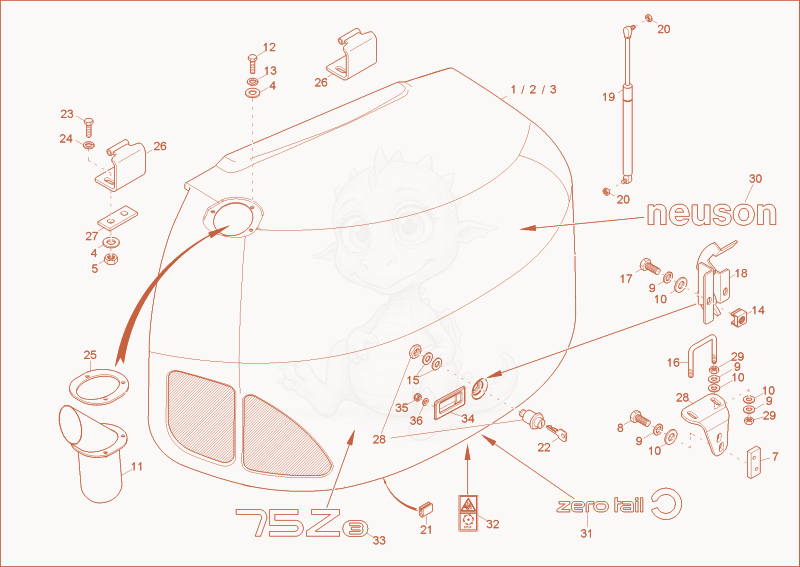

75Z3 engine hood Diagram
- engine hood - 1000166967×1
- Enginehood 1000168023×1
- 31000168024Not stockedengine hood×1
- washer 10,5 A2C DIN125 - 1000015432×7
- nut M10-8 A2C-DIN985 - 1000015408×4
- catch angle - 1000180103×1
- 71000012314Not stockedhinge plate×1
- 6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
- 91000015437Not stockedlock washer×8
- 101000013027Not stockedwasher×8
- Exhaustscoop 1000150231×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
- 131000015438Not stockedlock washer×3
- 141000015425Not stockedcage nut×2
- WASHER - 1000082615×2
- closing handle - 1000143710×1
- 171000013008Not stockedhex screw×2
- LOCK - 1000165165×1
- gas strut - 1000234003×1
- DIN985-M8-8-A2C - 1000015416×2
- edge protection - 1000098163×5.15
- EZ17 Key without cap - 1000184819×1
- hex screw - 1000085434×4
- 241000015434Not stockedwasher×4
- aluminium matt - 1000153834×1
- hinge angle - 1000124490×2
- plate - 1000110154×1
- push button - 1000078889×1
- 291000013021Not stockedhexagon nut×4
- sticker neuson logo - 1000179804×1
- STICKER - 1000178819×1
- sticker 'security' - 1000135230×1
- 331000178301Not stockedsticker type logo×1
- tray handle - 1000177503×1
- HEXAGON NUT - 1000085587×2
- Washer M5,3-DIN134 - 1000094967×2
