WN Excavator 75Z3

75Z3 TANK LINES Diagram

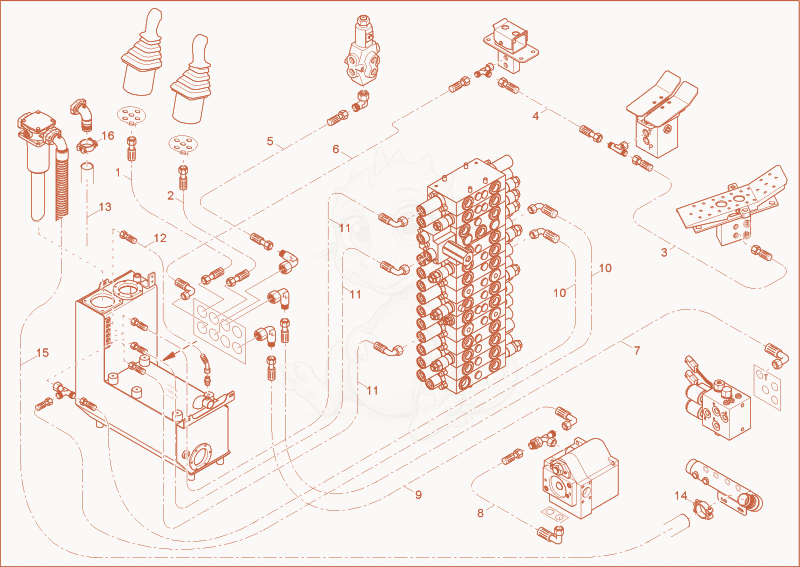

Exploded parts diagram of the TANK LINES of a Wacker Neuson 75Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000111742
    $60.67
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2100 0 - 1000111742×1
  • 21000076394
    $20.94
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2700 0 - 1000076394×1
  • 31000076661
    $30.82
    SLHYDR 1SCP6,0PN8 0 PN8 90 L500,0 0 - 1000076661×1
  • 41000076345
    $6.93
    SLHYDR 1SCP6,0PN8 0 PN8 0 L300,0 0 - 1000076345×1
  • 51000076396
    $15.17
    SLHYDR 1SCP6,0PN8 0 PN8 0 L1400 0 - 1000076396×1
  • 61000076545
    $38.45
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2000 0 - 1000076545×1
  • 71000076325
    $64.80
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2800 0 - 1000076325×1
  • 81000076662
    $11.02
    SLHYDR 1SCP6,0PN8 0 PN8 90 L600,0 0 - 1000076662×1
  • 91000077225Not stocked
    Hose×1
  • 101000125195
    $18.87
    SLHYDR 1SCP6,0PN8 0 PN8 90 L280,0 0 - 1000125195×2
  • 111000076664
    $32.53
    SLHYDR 1SCP6,0PN8 0 PN8 90 L700,0 0 - 1000076664×3
  • 121000130465
    $12.30
    SLHYDR 1SCP6,0PN8 45 PN8 0 L760,0 0 - 1000130465×1
  • 131000124100Not stocked
    RETURN HOSE×1
  • 141000138488
    $10.43
    hose clamp - 1000138488×1
  • 151000139414Not stocked
    reflux line×1
  • 161000138488
    $10.43
    hose clamp - 1000138488×1
