WN Excavator 75Z3

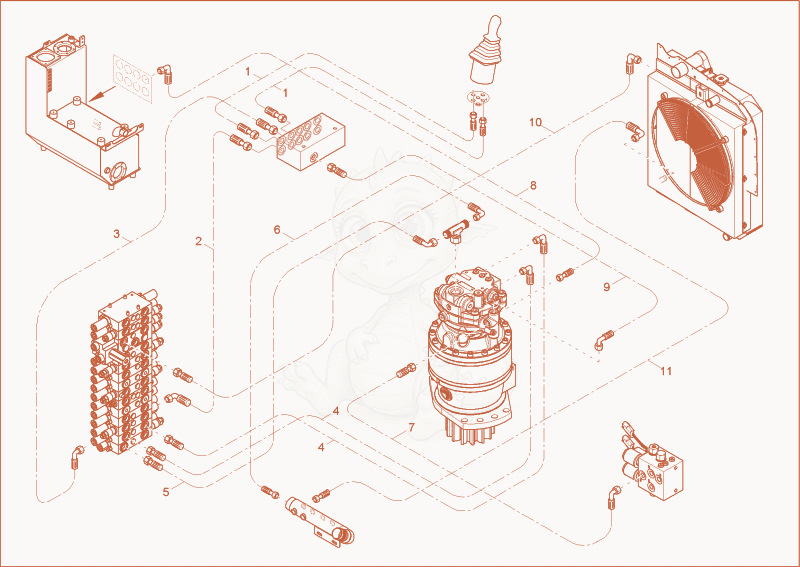

75Z3 TURNTABLE DRIVE UNIT INSTALLATION Diagram

Exploded parts diagram of the TURNTABLE DRIVE UNIT INSTALLATION of a Wacker Neuson 75Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000076391
    $15.19
    SLHYDR 1SCP6,0PN8 0 PN8 0 L1900 0 - 1000076391×2
  • 21000077949
    $16.98
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1900 0 - 1000077949×1
  • 31000358743Not stocked
    Hose×1
  • 41000160976Not stocked
    Hose×2
  • 51000125169Not stocked
    Hose×1
  • 61000125168
    $177.67
    SLHYDR 1SC 25 PN28 90 PN28 0 L1250 0 - 1000125168×1
  • 71000076540
    $71.76
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2600 0 - 1000076540×1
  • 81000077049
    $58.11
    SLHYDR 1SC 10 PN12 90 PN12 0 L900,0 0 - 1000077049×1
  • 91000076307
    $14.51
    SLHYDR 1SCP6,0PN8 0 PN8 90 L500,0 0 - 1000076307×1
  • 101000125192Not stocked
    Hose×1
  • 111000077915
    $187.97
    SLHYDR 1SC 25 PN28 90 PN28 0 L1400 0 - 1000077915×1
