Vibratory Plate DPU6555Hehapn

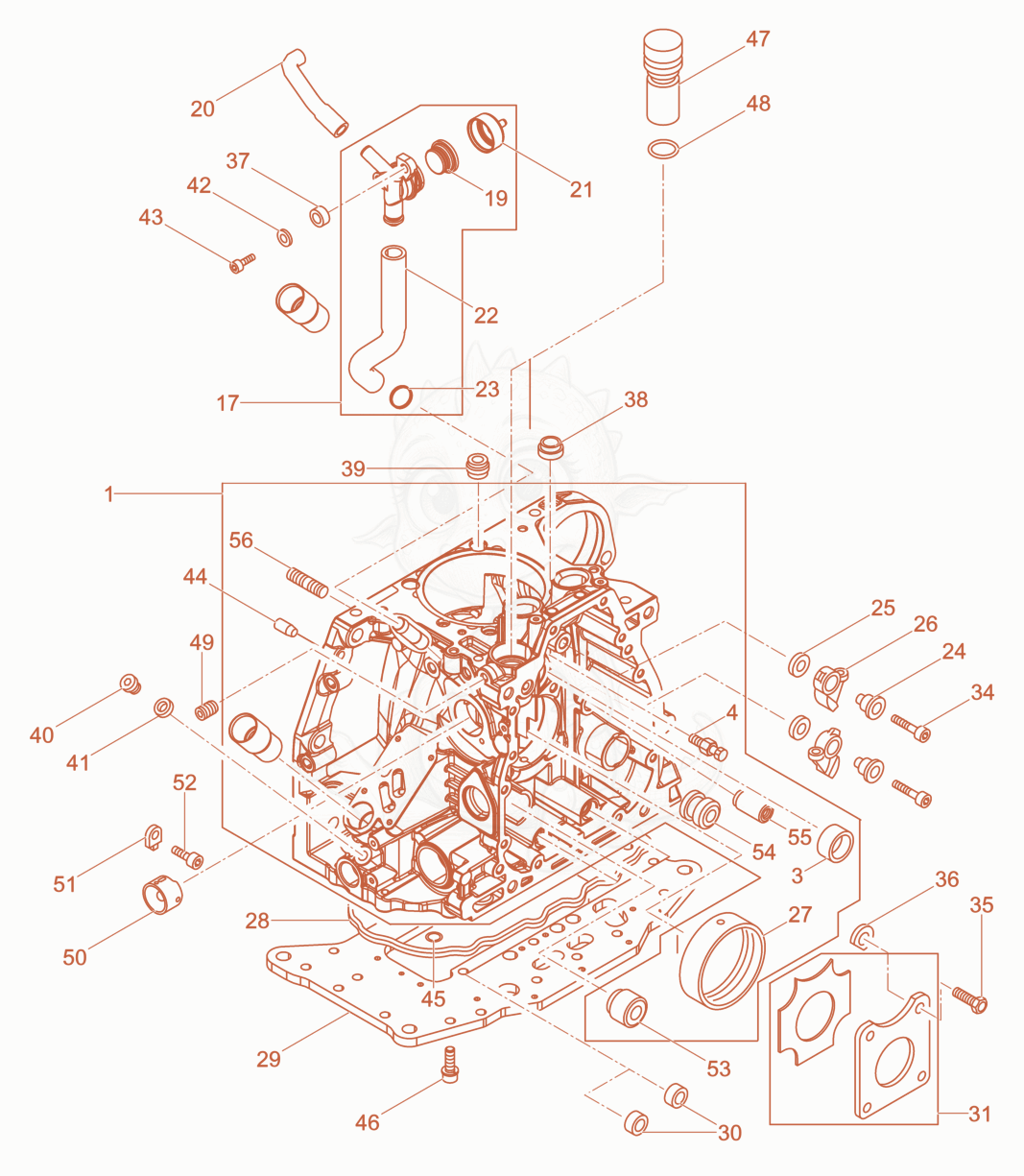

DPU6555HEHAPN Crankcase Diagram

Exploded parts diagram of the Crankcase of a Wacker Neuson DPU6555HEHAPN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100065038Not stocked
    Crankcase×1
  • 35000226589
    $27.64
    BEARING - 5000226589×1
  • 45000094922
    $19.53
    JET-LUBRICATION - 5000094922×1
  • 175000207561
    $115.56
    VALVE-BREATHER - 5000207561×1
  • 195100032125Not stocked
    Diaphragm×1
  • 205000098462
    $21.04
    Hose - 5000098462×1
  • 215000098461
    $16.49
    Cap - 5000098461×1
  • 225000098463
    $27.85
    Hose - 5000098463×1
  • 235000102470
    $8.06
    Clip - 5000102470×1
  • 245000094936
    $44.20
    SHAFT-SPINDLE,CAM FOLLOWER - 5000094936×2
  • 255000104365
    $11.94
    Washer - 5000104365×2
  • 265000094937
    $177.43
    LEVER-SLIDING - 5000094937×2
  • 275100062247Not stocked
    Main Bearing×1
  • 285000094952
    $67.76
    GASKET - 5000094952×1
  • 295100078487Not stocked
    Engine Support×1
  • 305000094935
    $10.36
    WASHER-SEALING RING - 5000094935×2
  • 315100030356
    $120.20
    Check disc cpl. - 5100030356×1
  • 345000217112
    $8.06
    SCREW-SOCKET HD M6 X 30 - 5000217112×2
  • 355000098456
    $11.94
    Screw - 5000098456×4
  • 365100032121Not stocked
    Shim×4
  • 365000098455
    $8.06
    WASHER 1.05MM - 5000098455×4
  • 375100062250Not stocked
    Bush×2
  • 385000097403
    $6.52
    Rubber Funnel - 5000097403×2
  • 395100051909
    $8.71
    Gasket - 5100051909×2
  • 405000151213
    $8.06
    SCREW M10X1 5.8 A3C - 5000151213×1
  • 415000071121
    $6.11
    SEAL-RING A10 X 13.5,COPR - 5000071121×1
  • 425000151290
    $5.53
    WASHER-SPRING, A6 - 5000151290×2
  • 435000151231
    $8.06
    SCREW-ALLEN, M6X16 - 5000151231×2
  • 445000108694
    $8.06
    PIN-CYLINDER, 8M 6X20 - 5000108694×4
  • 455000094934
    $7.02
    O-Ring - 5000094934×2
  • 465000202463
    $8.06
    SCREW-ALLEN,M8 X 25,8.8 - 5000202463×22
  • 475100062262Not stocked
    Cylinder×1
  • 485000095008
    $7.02
    O-RING 22X1.6 - 5000095008×1
  • 495000020348
    $8.06
    ROD-THRD M8X16-33H - 5000020348×1
  • 505100051905
    $97.33
    Tappet - 5100051905×1
  • 515000126526
    $30.50
    guide - 5000126526×1
  • 525000207610
    $6.11
    SCREW M6X16,SOC.HD. - 5000207610×1
  • 535000207596
    $32.95
    plug - 5000207596×1
  • 545000207597
    $32.95
    plug - 5000207597×1
  • 555000202406
    $31.72
    BUSHING - 5000202406×1
  • 565100013800
    $4.03
    Stud M8x22 - 5100013800×8
