Vibratory Plate DPU6555Hehapn

DPU6555HEHAPN Generator Diagram

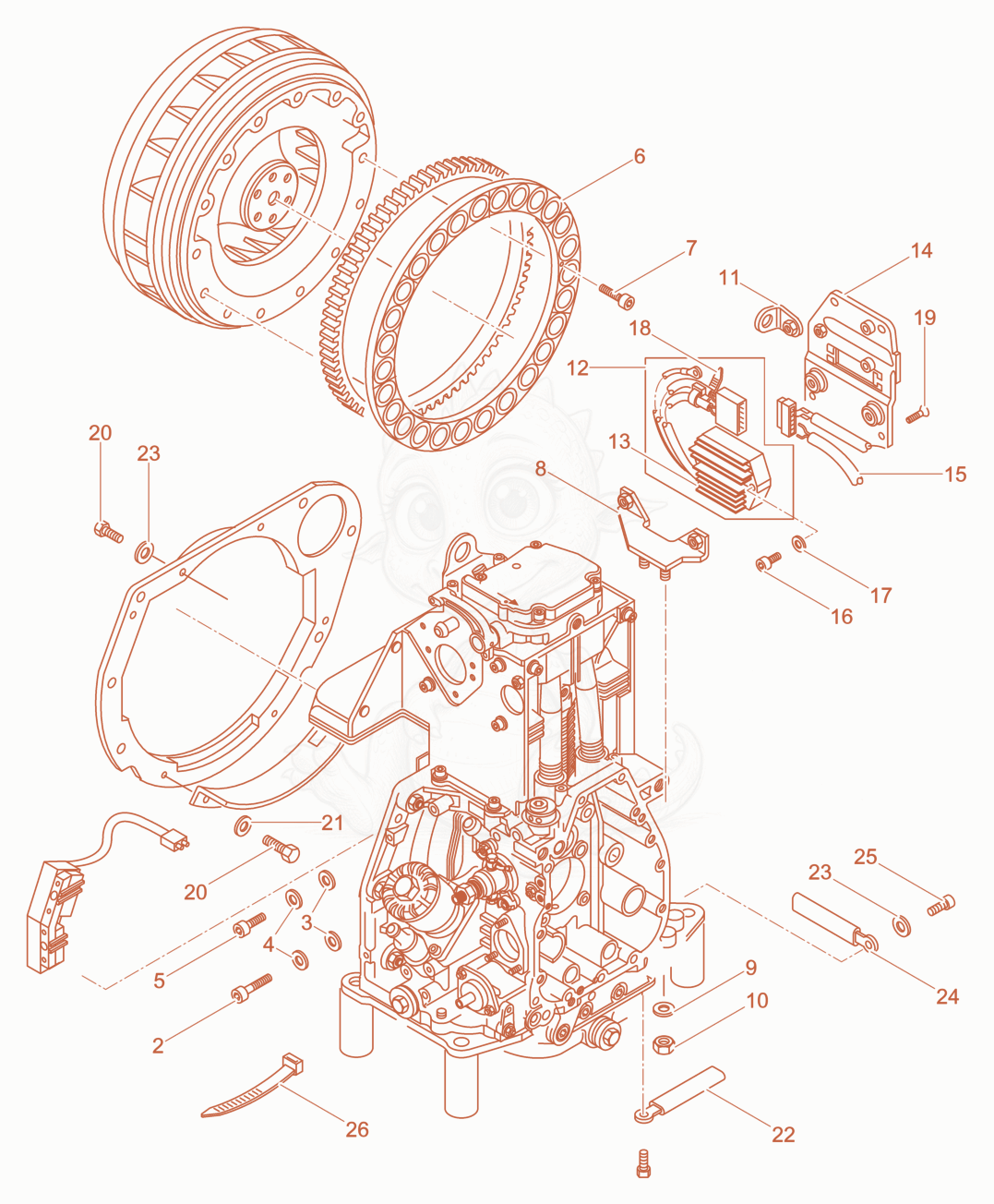

Exploded parts diagram of the Generator of a Wacker Neuson DPU6555HEHAPN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000207612
    $8.06
    SCREW M6X40,SOC.HD. - 5000207612×1
  • 35000151324
    $8.06
    WASHER-FLAT 6.4 - 5000151324×7
  • 45000207593
    $8.06
    WASHER-SPRING - 5000207593×2
  • 55000203134
    $8.06
    SCREW-ALLEN M6X30 - 5000203134×1
  • 65100062256Not stocked
    Magnetic ring×1
  • 75100062257Not stocked
    Cheese head screw M4x16×14
  • 85000097591
    $26.77
    HOLDER - 5000097591×1
  • 95000151218
    $8.06
    WASHER-SPRING - 5000151218×2
  • 105000151379
    $8.06
    NUT M8 8 A3C - 5000151379×2
  • 115000097593
    $15.30
    Angle - 5000097593×1
  • 125100062259
    $527.25
    Regulator 12V - 5100062259×1
  • 135100062260
    $338.81
    Regulator 12V - 5100062260×1
  • 145000097592
    $84.79
    PLATE - 5000097592×1
  • 155000207562
    $43.10
    cable - 5000207562×1
  • 165000202440
    $8.06
    SCREW-ALLEN,M8 X 35 - 5000202440×2
  • 175000151218
    $8.06
    WASHER-SPRING - 5000151218×2
  • 185000109710Not stocked
    Tie cable×3
  • 195000151387
    $8.06
    SCREW-M6X12 8.8 A3C - 5000151387×2
  • 205000202436
    $8.06
    SCREW-M6 X 12 - 5000202436×4
  • 215000151324
    $8.06
    WASHER-FLAT 6.4 - 5000151324×4
  • 225000102472
    $16.49
    Clamp - 5000102472×2
  • 235000151456
    $8.06
    WASHER-SPRING 6 A3C - 5000151456×2
  • 245000097590
    $16.49
    Clamp - 5000097590×1
  • 255000129016
    $8.06
    SCREW-ALLEN HD,M6X12-8.8A3C - 5000129016×1
  • 265000109710Not stocked
    Tie cable×4
