Vibratory Plate DPU6555Hehapn

DPU6555HEHAPN Piston, Connecting rod Diagram

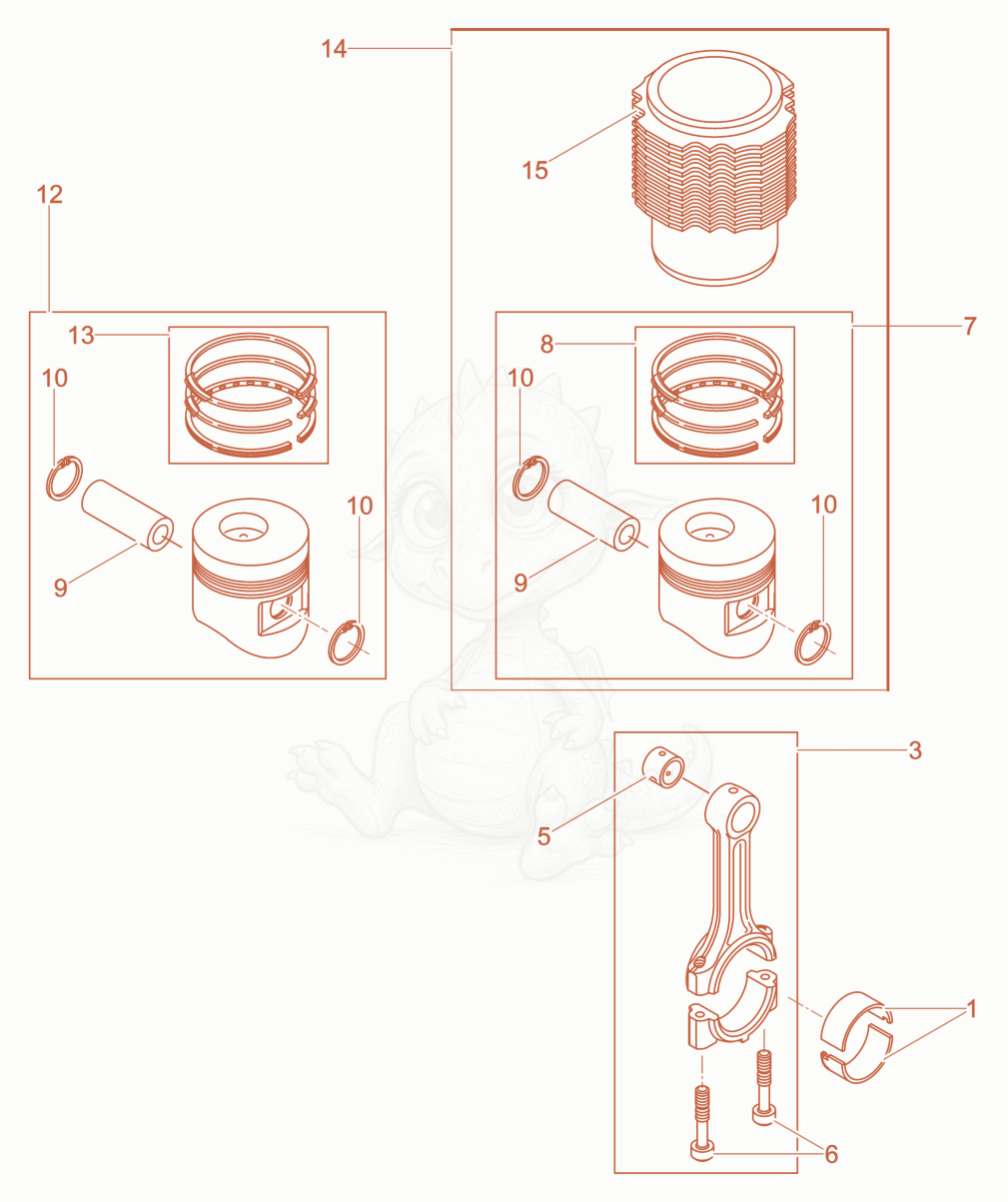

Exploded parts diagram of the Piston, Connecting rod of a Wacker Neuson DPU6555HEHAPN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000094866
    $86.64
    BEARING-CONNECTING ROD - 5000094866×1
  • 15000107222
    $178.86
    ROD-CONNECTION,BEARING 0.5MM - 5000107222×1
  • 35100051962Not stocked
    Connecting rod cpl.×1
  • 55100078485Not stocked
    Slide bearing×1
  • 65000105927
    $36.45
    SCREW-CONNECTING ROD - 5000105927×2
  • 75100062328Not stocked
    Piston×1
  • 85100062258Not stocked
    Set of piston rings×1
  • 95100062269Not stocked
    Piston pin×1
  • 105100051908Not stocked
    Retaining ring×2
  • 125100062280Not stocked
    Piston +0,5×1
  • 135100062291Not stocked
    Set of piston rings×1
  • 145000210276Not stocked
    Cylinder with piston EPA2×1
