Vibratory Plate DPU6555Hehapn

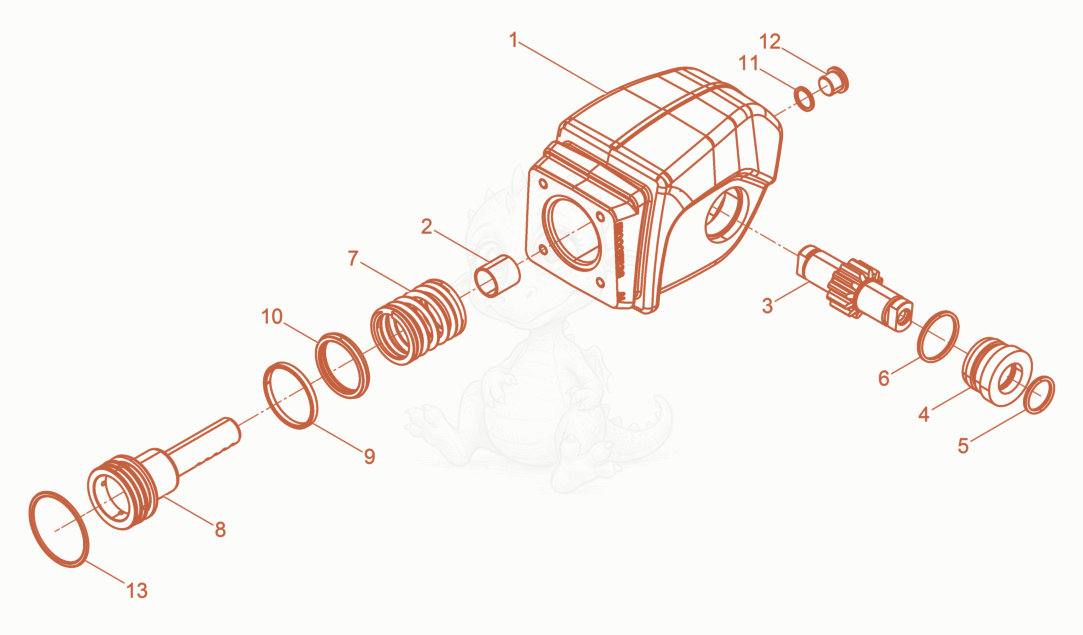

DPU6555HEHAPN Center Pole Head cpl. Diagram
- Center pole head - 5100005537×1
- BUSHING-PERMAGLIDE - 5000126164×1
- GEAR SHAFT - 5000069726×1
- BUSHING - 5000125926×2
- O-RING 26 X 3-70 Sh - 5000018194×2
- O-RING 38 X 3 - 5000068752×2
- Compression spring - 5100005559×1
- Control piston - 5100005138×1
- Guide Ring KB 55x50x5,5 HG517 - 5100005532×1
- Gasket - 5100005533×1
- SEAL-RING 16 X 20 - 5000012082×1
- PLUG M16 X 1.5 - 5000011050×1
- O-RING 58 X 3-70 Sh - 5000039235×1
