Vibratory Plate DPU6555Hehapn

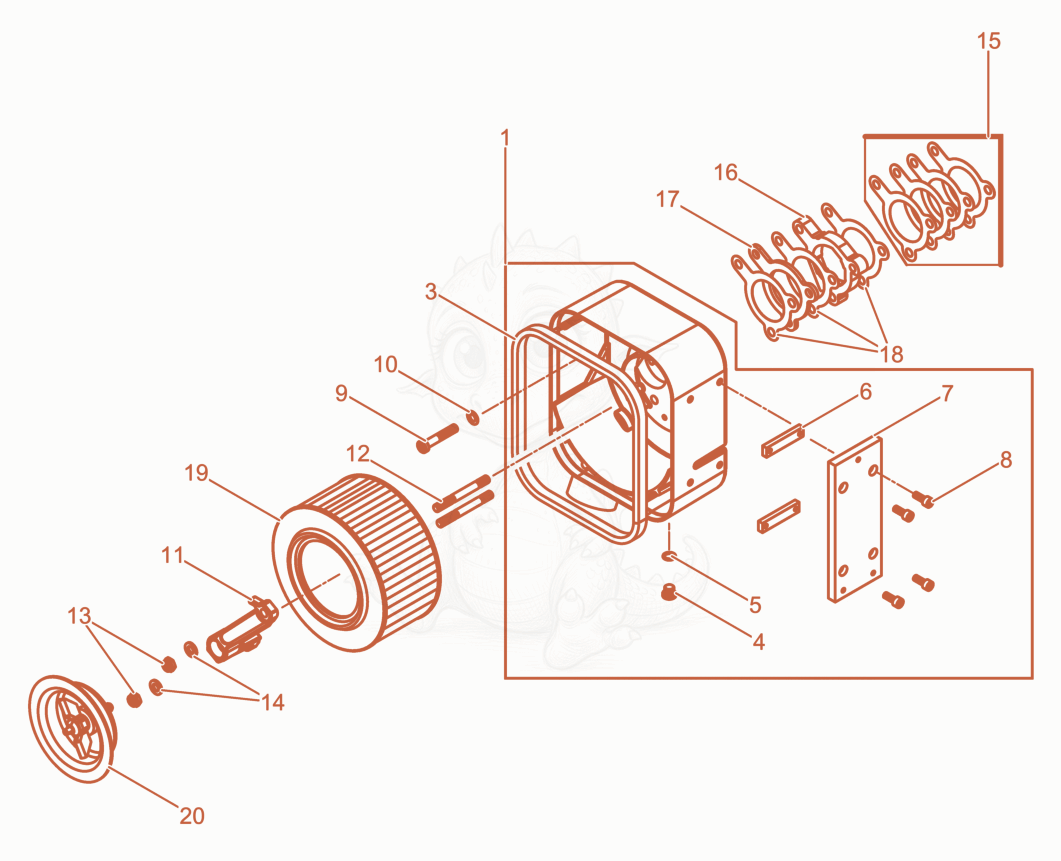

DPU6555HEHAPN Air filter Diagram

Exploded parts diagram of the Air filter of a Wacker Neuson DPU6555HEHAPN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100062312Not stocked
    Air filter housing×1
  • 35000097831
    $101.84
    Seal - 5000097831×1
  • 45000151213
    $8.06
    SCREW M10X1 5.8 A3C - 5000151213×1
  • 55000071121
    $6.11
    SEAL-RING A10 X 13.5,COPR - 5000071121×1
  • 65100062314Not stocked
    Bar×2
  • 75100062315Not stocked
    Console / Bracket×1
  • 85000151231
    $8.06
    SCREW-ALLEN, M6X16 - 5000151231×4
  • 95000207614
    $8.06
    SCREW M8X45,SOC.HD. - 5000207614×1
  • 105200022048Not stocked
    Spring washer×1
  • 115000099793
    $39.96
    HOLDER - 5000099793×1
  • 125000207815
    $11.94
    STUD M8 X 60 - 5000207815×2
  • 135000129516
    $8.06
    NUT M8,HEX - 5000129516×2
  • 145000151553
    $7.71
    WASHER-FLAT 8.4 ST A3C - 5000151553×2
  • 155000097840
    $21.67
    Gasket Set - 5000097840×1
  • 165000097833
    $36.84
    FLANGE-INTERMEDIATE - 5000097833×1
  • 175000095089
    $17.38
    FLANGE-INSULATING - 5000095089×1
  • 185000095088
    $7.02
    Seal - 5000095088×1
  • 195000095091
    $32.32
    ELEMENT-AIR CLEANER - 5000095091×1
  • 205100002774
    $98.18
    Filter Cover cpl. - 5100002774×1
