Vibratory Plate DPU6555Hehapn

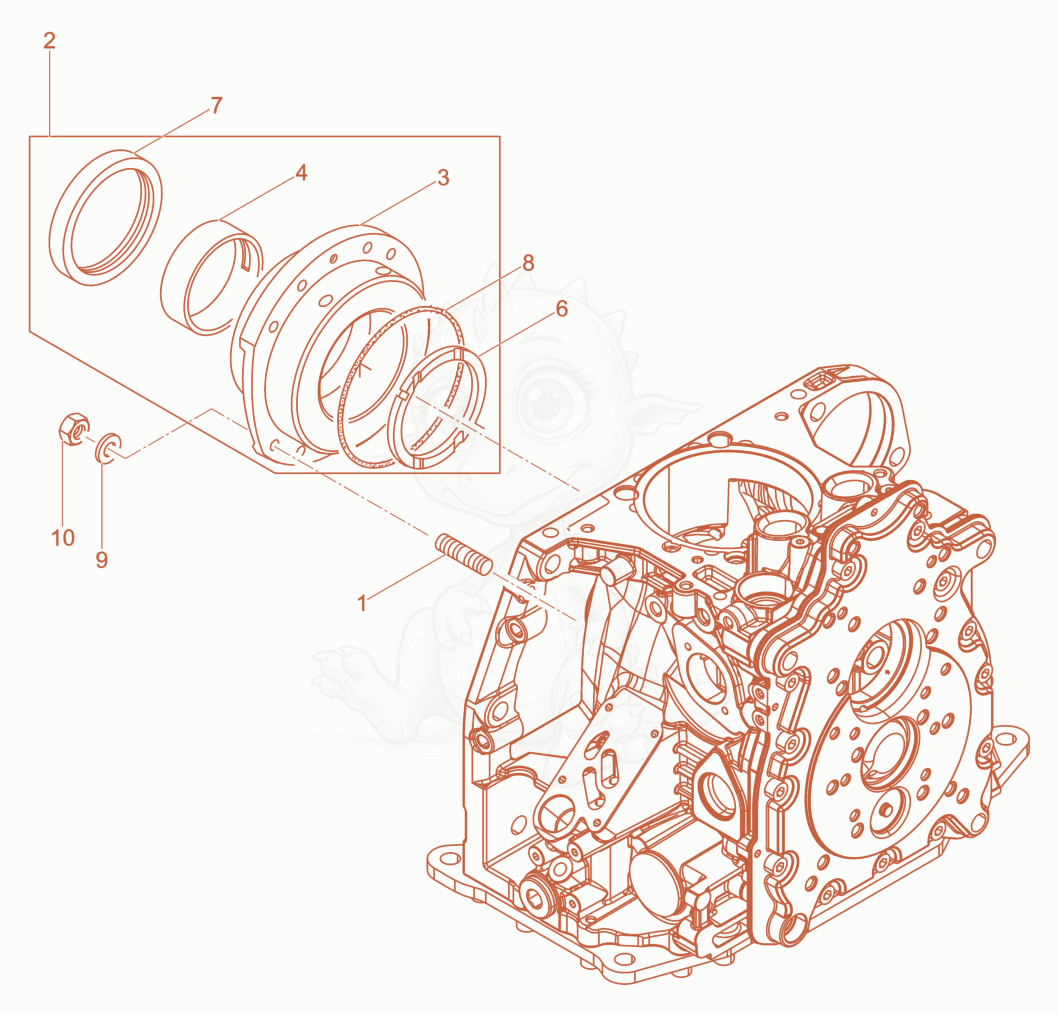

DPU6555HEHAPN Bearing flange Diagram

Exploded parts diagram of the Bearing flange of a Wacker Neuson DPU6555HEHAPN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100013800
    $4.03
    Stud M8x22 - 5100013800×8
  • 25100062274Not stocked
    Bearing flange cpl.×1
  • 35000128939
    $525.33
    FLANGE-BEARING - 5000128939×1
  • 45100062286Not stocked
    Main Bearing×1
  • 45100062298Not stocked
    Main Bearing 0,5×1
  • 65000094871
    $82.68
    PLATE - 5000094871×1
  • 75000094875
    $36.43
    SEAL-SHAFT - 5000094875×1
  • 85000094872
    $21.67
    O-Ring - 5000094872×1
  • 95000202460
    $8.06
    WASHER-8.4 - 5000202460×8
  • 105000094876
    $5.53
    NUT M8 10 - 5000094876×8
