DT08

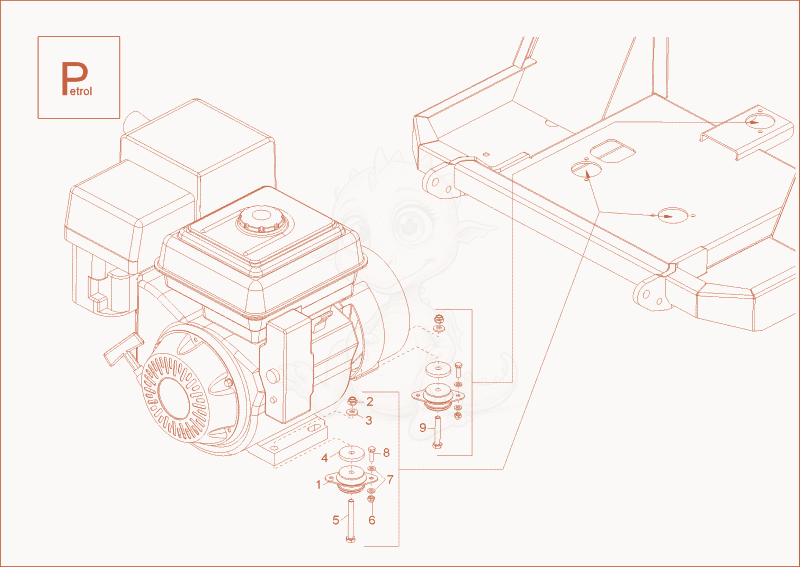

DT08 Engine bedding Diagram

Exploded parts diagram of the Engine bedding of a Wacker Neuson DT08, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000272573
    $132.83
    shock absorber element - 1000272573×3
  • 21000269279
    $2.48
    hexagon nut - 1000269279×3
  • 31000271022
    $1.90
    tension disc - 1000271022×3
  • 41000271909
    $4.95
    WASHER - 1000271909×3
  • 51000022334Not stocked
    hex screw×2
  • 61000269276
    $1.24
    HEXAGON NUT - 1000269276×6
  • 71000015430Not stocked
    u-washer×12
  • 81000018400Not stocked
    hex screw×6
  • 91000018447Not stocked
    hex screw×1
