DT08

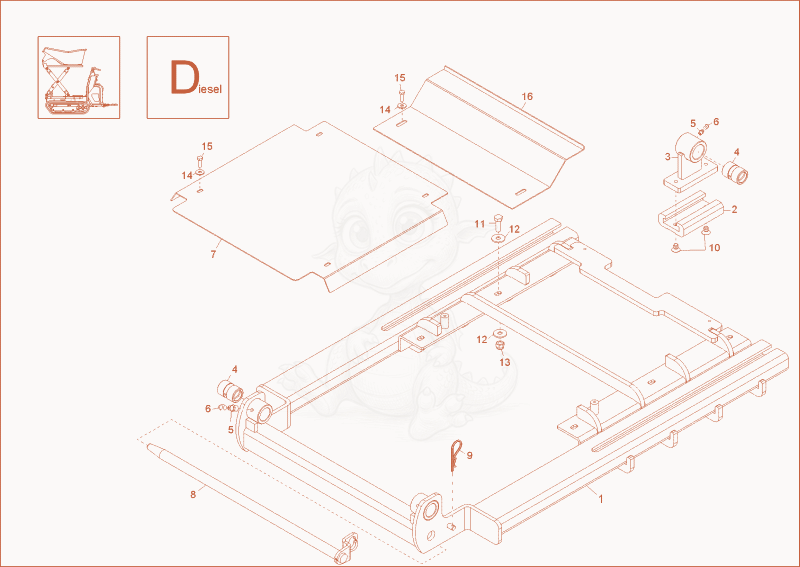

DT08 CHASSIS 1 (OPTION) Diagram
- Chassis 1000282727×1
- GUIDANCE - 1000282339×2
- sledge - 1000282340×2
- BUSHING - 1000282352×4
- 51000015476Not stockedgrease nipple×4
- PROTECTION CAP - 1000282746×4
- Cover 1000282858×1
- Pin 1000272651×1
- COTTERPIN - 1000272072×1
- SCREW M8x20-8.8 A2C DIN7991 - 1000282356×4
- 111000015343Not stockedhex screw×6
- WASHER - 1000271815×12
- hexagon nut - 1000269279×6
- washer - 1000383668×4
- HEX SCREW - 1000085382×4
- Cover 1000284653×1
