DT08

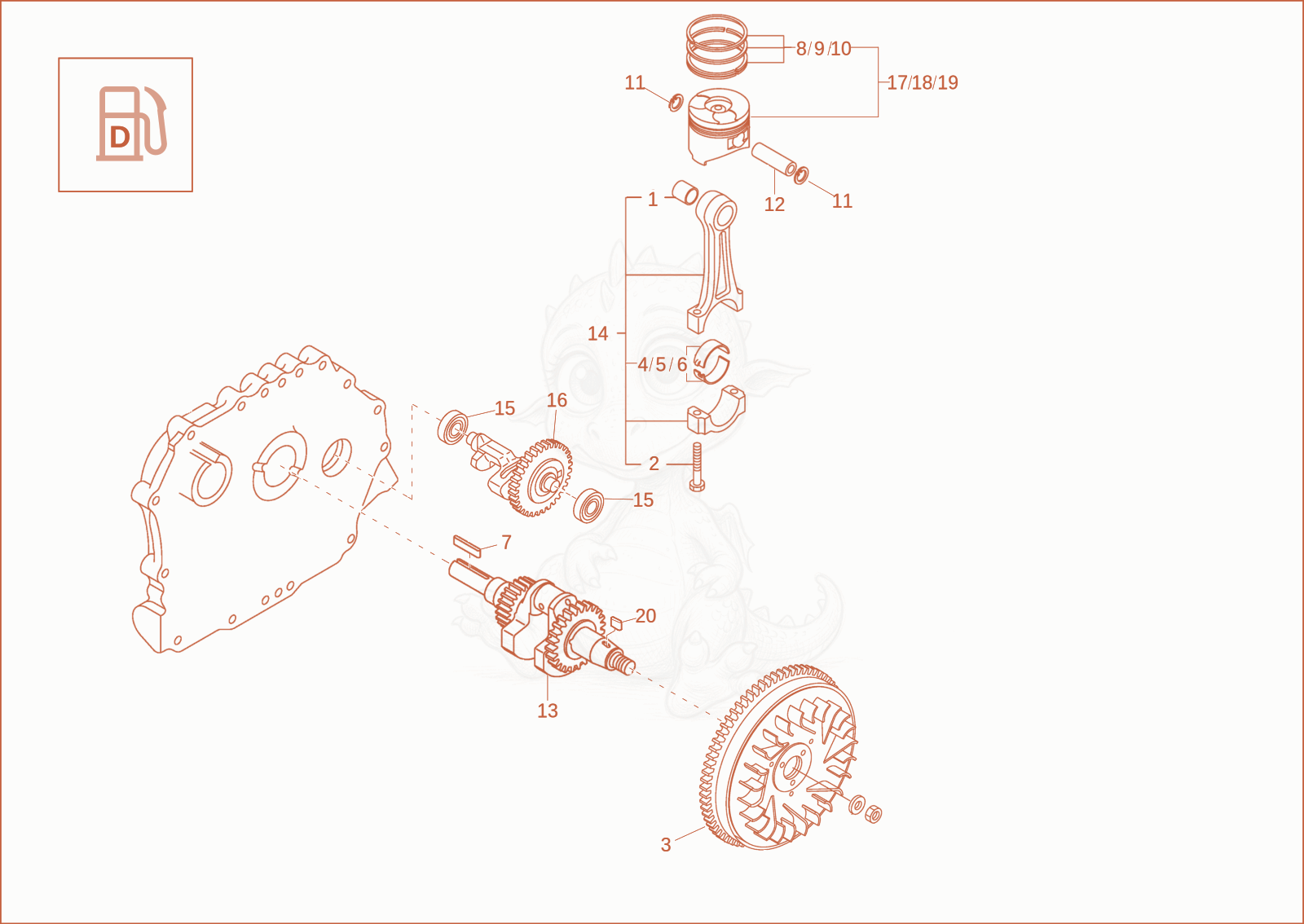

DT08 crankshaft, piston Diagram

Exploded parts diagram of the crankshaft, piston of a Wacker Neuson DT08, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000170492
    $13.92
    BUSHING - 1000170492×1
  • 21000034987Not stocked
    hex screw×1
  • 31000303994
    $319.79
    Ring gear - 1000303994×1
  • 41000170494
    $22.30
    CONN.ROD BEARING - 1000170494×1
  • 51000239289
    $26.52
    conn.rod bearing - 1000239289×1
  • 61000365966Not stocked
    conn.rod bearing×1
  • 75000085555
    $7.55
    fitting key - 5000085555×1
  • 81000239382
    $122.54
    SET OF BACKUP RINGS - 1000239382×1
  • 91000239384
    $98.76
    SET OF BACKUP RINGS - 1000239384×1
  • 101000366061Not stocked
    SET OF BACKUP RINGS×1
  • 111000108110
    $2.86
    LOCK RING - 1000108110×2
  • 121000170491
    $55.21
    PIN - 1000170491×1
  • 131000365963Not stocked
    crank shaft×1
  • 141000239383
    $229.44
    connecting rod - 1000239383×1
  • 151000239472
    $20.06
    BEARING - 1000239472×2
  • 161000239641
    $253.56
    shaft - 1000239641×1
  • 171000239385
    $307.67
    PISTON - 1000239385×1
  • 181000239387
    $296.71
    PISTON - 1000239387×1
  • 191000365970Not stocked
    piston×1
  • 201000365965Not stocked
    fitting key×1
