DT08

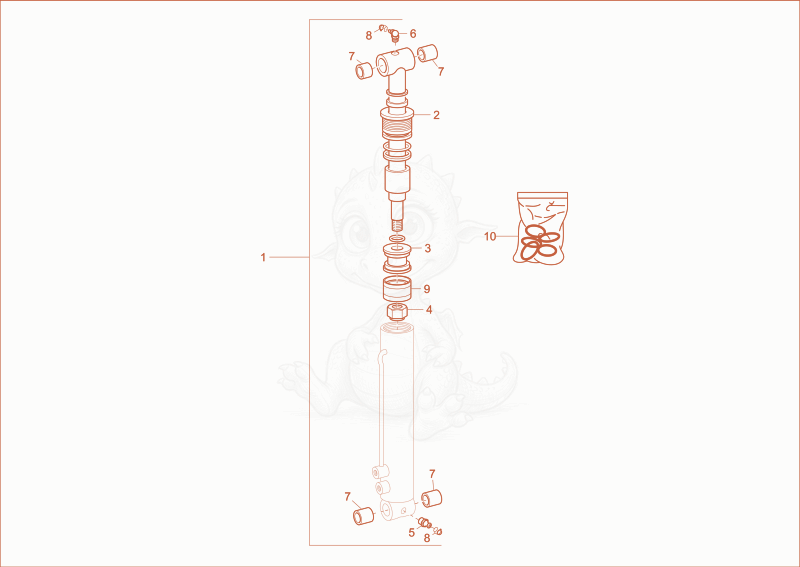

DT08 tilt ram (OPTION) Diagram

Exploded parts diagram of the tilt ram (OPTION) of a Wacker Neuson DT08, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000353276Not stocked
    tilt ram×1
  • 21000321845Not stocked
    guide bushing×1
  • 31000321846
    $86.06
    PISTON - 1000321846×1
  • 41000279057
    $8.18
    hexagon nut - 1000279057×1
  • 51000015476Not stocked
    grease nipple×1
  • 61000279171
    $2.72
    LUBRICATION NIPPLE - 1000279171×1
  • 71000270735
    $12.83
    bushing - 1000270735×4
  • 81000282746
    $0.70
    PROTECTION CAP - 1000282746×2
  • 91000353400Not stocked
    distance piece×1
  • 101000321850Not stocked
    seal kit×1
  • 111000353399Not stocked
    piston rod×1
