Track dumper

DT08PRO TRAVELLING GEAR INSTALLATION Diagram

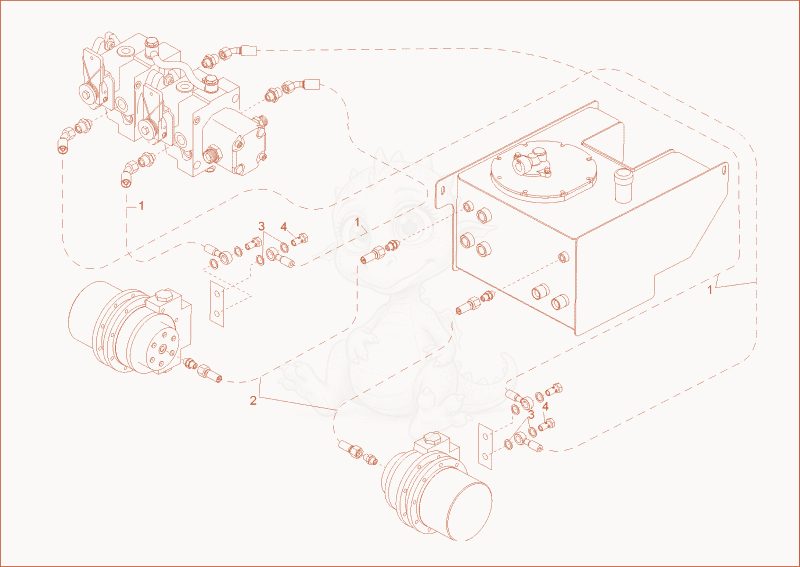

Exploded parts diagram of the TRAVELLING GEAR INSTALLATION of a Wacker Neuson DT08PRO, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000273272
    $32.80
    SLHYDR 1SCP5,0RN1/40 DK1/80 L1000 0 - 1000273272×4
  • 21000270874
    $53.87
    SLHYDR 1SC 6,0DK1/40 DK1/40 L700,0 0 - 1000270874×2
  • 31000129428
    $1.51
    copper ring - 1000129428×8
  • 41000274319
    $7.21
    BANJO BOLT - 1000274319×4
