Track dumper

DT08PRO battery Diagram

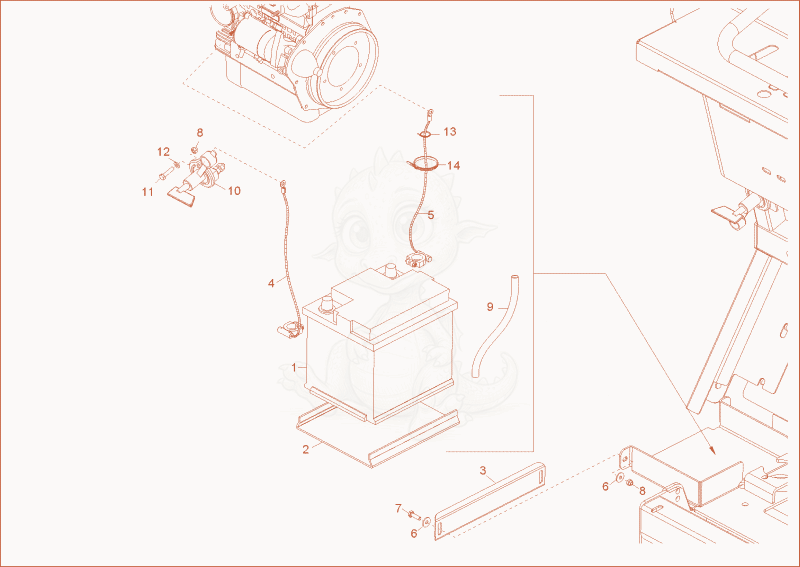

Exploded parts diagram of the battery of a Wacker Neuson DT08PRO, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000272876
    $424.05
    Battery 1000272876×1
  • 21000272504
    $21.93
    BRACKET BATTERY - 1000272504×1
  • 31000275593
    $19.54
    BRACKET - 1000275593×1
  • 41000278991
    $218.94
    NEGATIVE CABLE - 1000278991×1
  • 51000273081
    $239.88
    Positive Cable - 1000273081×1
  • 61000383668
    $1.24
    washer - 1000383668×4
  • 71000018400Not stocked
    hex screw×2
  • 81000269276
    $1.24
    HEXAGON NUT - 1000269276×4
  • 91000272172
    $11.43
    FUEL LINE - 1000272172×1
  • 101000272170
    $84.44
    shut off switch - 1000272170×1
  • 111000085384
    $0.84
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×2
  • 121000015430Not stocked
    washer×2
  • 131000272139
    $1.55
    CLAMP - 1000272139×1
  • 141000273084
    $1.78
    CABLE CLAMP - 1000273084×1
