Track dumper

DT08PRO step plate Diagram

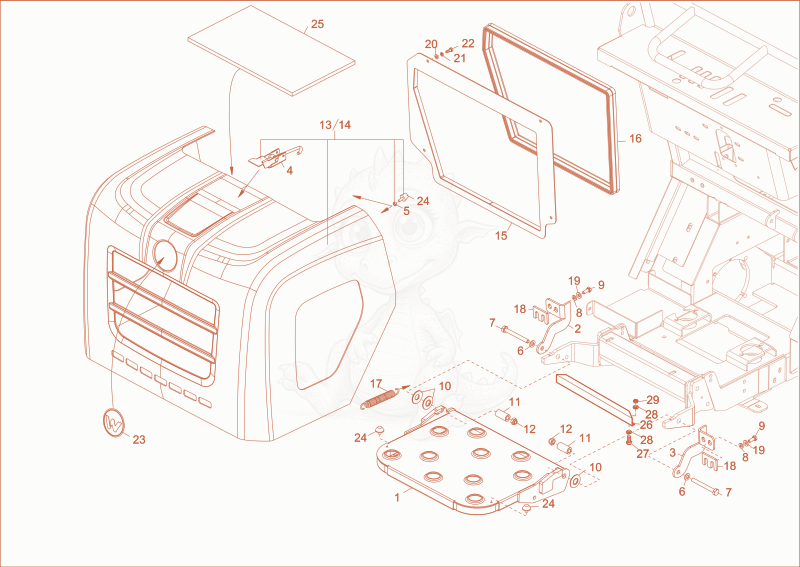

Exploded parts diagram of the step plate of a Wacker Neuson DT08PRO, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000270725
    $196.00
    Stepplate 1000270725×1
  • 21000322569
    $58.47
    BRACKET - 1000322569×1
  • 31000322570
    $40.93
    BRACKET - 1000322570×1
  • 41000270728
    $255.19
    LOCK HOOK - 1000270728×1
  • 51000015405Not stocked
    hexagon nut×2
  • 61000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 71000085357
    $1.08
    hex screw - 1000085357×2
  • 81000015431Not stocked
    washer×4
  • 91000013008Not stocked
    hex screw×4
  • 101000270677
    $4.95
    DISC SPRING - 1000270677×3
  • 111000275865
    $18.65
    distance piece - 1000275865×2
  • 121000269291
    $1.55
    HEXAGON NUT - 1000269291×2
  • 131000327529
    $4,871.55
    BONNET - 1000327529×1
  • 141000327530
    $7,030.93
    BONNET - 1000327530×1
  • 151000279037
    $396.33
    Cover 1000279037×1
  • 161000279038
    $160.95
    RUBBER COVER - 1000279038×1
  • 171000272176
    $9.56
    tension spring - 1000272176×1
  • 181000321843Not stocked
    distance piece×6
  • 191000271022
    $1.90
    tension disc - 1000271022×4
  • 201000015430Not stocked
    washer×4
  • 211000015444Not stocked
    spring washer×4
  • 221000085382
    $0.70
    HEX SCREW - 1000085382×4
  • 231000189891
    $65.27
    badge - 1000189891×1
  • 241000270125
    $17.34
    RUBBER BUFFER - 1000270125×4
  • 251000283853
    $226.92
    insulating mat - 1000283853×1
  • 261000344733Not stocked
    protection plate×1
  • 271000013008Not stocked
    hex screw×2
  • 281000015431Not stocked
    washer×4
  • 291000269279
    $2.48
    hexagon nut - 1000269279×2
