Track dumper

DT08PRO OPERATING VALVE 3 (Option) Diagram

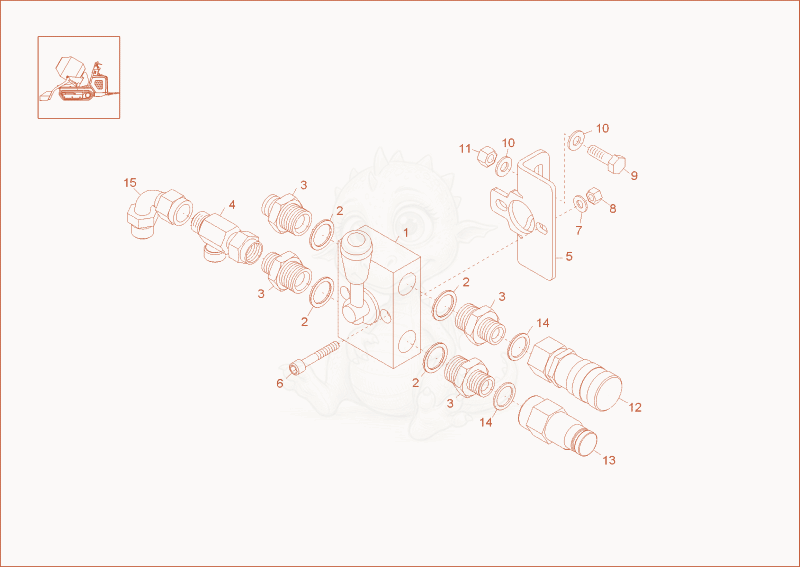

Exploded parts diagram of the OPERATING VALVE 3 (Option) of a Wacker Neuson DT08PRO, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000274315
    $237.62
    valve - 1000274315×1
  • 21000022187Not stocked
    seal ring×4
  • 31000281845
    $10.15
    Adapter 3/4"BSP-1/2"BSP - 1000281845×4
  • 41000282966
    $47.41
    Screw Joint - 1000282966×1
  • 51000282967
    $15.48
    BRACKET - 1000282967×1
  • 61000085458
    $0.73
    Screw M6x40-8.8 A2C DIN912 - 1000085458×2
  • 71000015430Not stocked
    washer×2
  • 81000282969
    $2.48
    Hex nut M8-8 - 1000282969×2
  • 91000015343Not stocked
    hex screw×2
  • 101000271022
    $1.90
    tension disc - 1000271022×4
  • 111000085572
    $5.39
    hexagon nut - 1000085572×2
  • 121000283126
    $109.31
    Quick coupler - 1000283126×1
  • 131000283127
    $69.67
    Quick coupler - 1000283127×1
  • 141000129428
    $1.51
    copper ring - 1000129428×2
  • 151000270661
    $30.25
    Screw Joint - 1000270661×1
