Track dumper

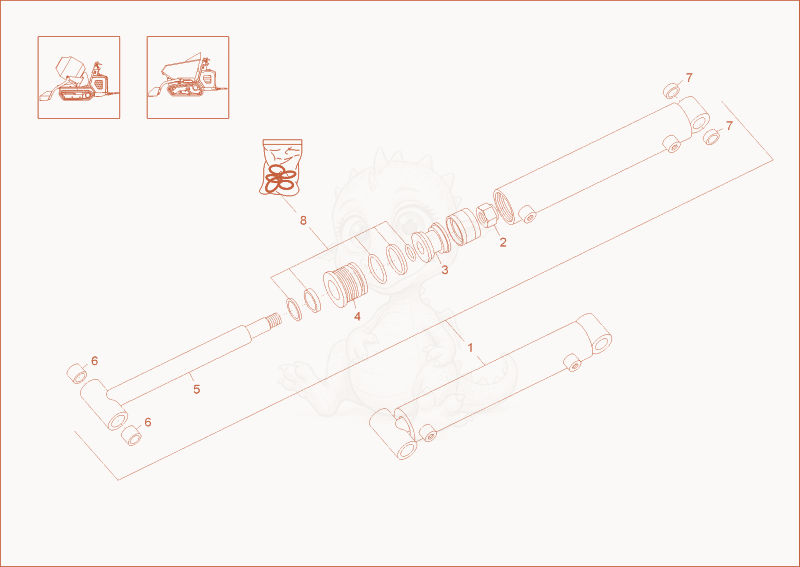

DT08PRO CYLINDER (Option) Diagram

Exploded parts diagram of the CYLINDER (Option) of a Wacker Neuson DT08PRO, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000284206
$657.01
Ram 1000284206×2
21000272834
$4.51
HEXAGON NUT - 1000272834×2
31000279125
$235.51
PISTON - 1000279125×2
41000279727
$294.05
BUSHING - 1000279727×2
51000284205
$173.12
PISTON ROD - 1000284205×2
61000279127
$10.79
BUSHING - 1000279127×2
71000283606
$6.55
BUSHING - 1000283606×2
81000272669
$58.98
cylinder seal kit - 1000272669×2
