DT23

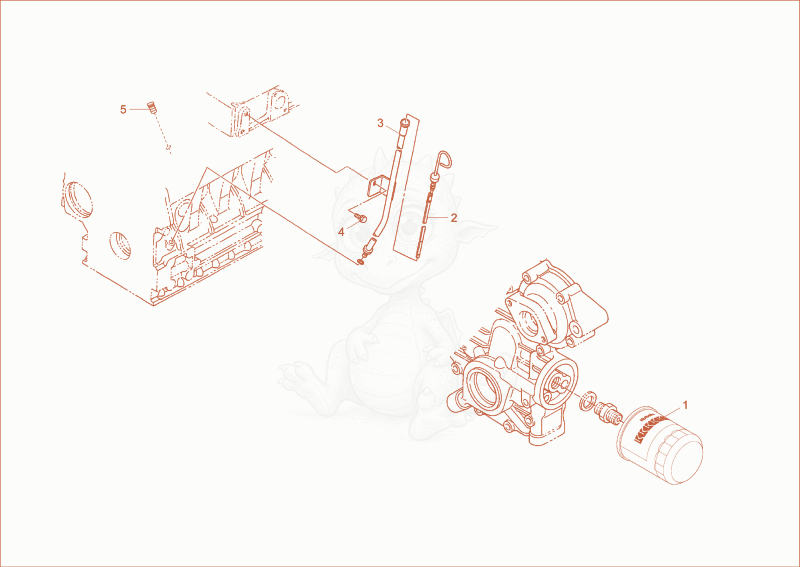

DT23 LUB OIL SYSTEM Diagram

Exploded parts diagram of the LUB OIL SYSTEM of a Wacker Neuson DT23, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000414529Not stocked
    oil filter×1
  • 21000416631Not stocked
    oildip stick×1
  • 31000087587Not stocked
    o-ring×1
  • 41000085226Not stocked
    hex screw×1
  • 51000416615Not stocked
    plug×1
